Manually releasing parking lock

For various tasks, it is necessary to unlock and lock the parking lock.

This can be done from inside the passenger compartment or underneath the vehicle.

Underneath vehicle:

• Remove UNDERBODY PROTECTION .

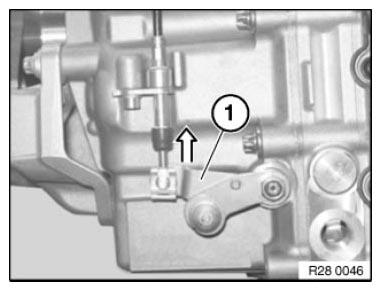

• Press lever (1) upwards.

Locking:

• Release lever (1).

Courtesy of BMW OF NORTH AMERICA, INC.

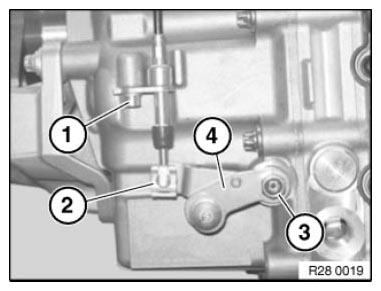

If permanent unlocking is desired

• Release screw (1).
• Unlock retainer (2).
• Release cable from operating lever (4).
• Tie up operating lever (4) with cable strap.

Locking:

• Unfasten operating lever (4) and secure cable.
