Replacing adjusting lever for steering column
Necessary preliminary work:
- Remove TRIM PANEL FOR PEDAL MECHANISM
- US vehicles only: Remove AIRBAG MODULE for driver's knee protection
Removal:

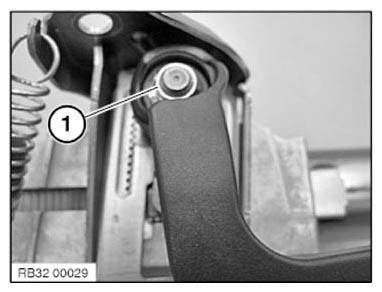

Release nuts (1) from footwell and detach adjustment lever.
Installation note:
Part(s) : Replace nut (1).
In installed or closed condition, the adjustment lever must be positioned parallel with the steering column!
Tightening torque 32 31 5AZ .
