REP-TAT-P-3231-02 Fit steering column shroud upper section

Prerequisite

Steering column in bottom and raised position.

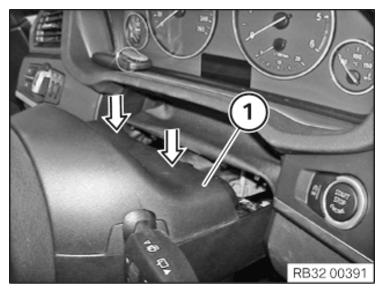

• Insert the steering column shroud upper section (1) and clip in the direction of the arrow.

  Courtesy of BMW OF NORTH AMERICA, INC.

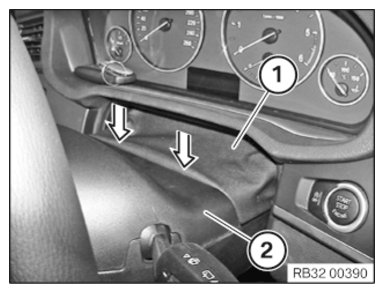

• Position and clip in the gap cover (1) for the steering column onto the steering column shroud upper section (2) in the direction of the arrow.

  Courtesy of BMW OF NORTH AMERICA, INC.
