REP-TAT-P-3231-01 Removing steering column shroud upper section

Prerequisite

Steering column in bottom and raised position.

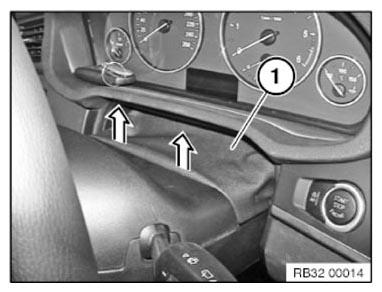

• Carefully pull the gap cover for the steering column (1) upwards and unclip.

  Courtesy of BMW OF NORTH AMERICA, INC.

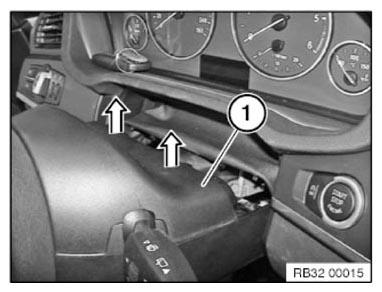

• Carefully pull the steering column shroud upper section (1) upwards at the rear, unclip and remove.

  Courtesy of BMW OF NORTH AMERICA, INC.
