Replacing left or right track rod

Special tools required:

• 323160

Necessary preliminary tasks:

• Remove FRONT WHEEL .
• Remove STIFFENING PLATE .
• Remove left or right STEERING ASSEMBLIES COVER .

Removal:

Slacken nut (1).

• If necessary, counter-hold at the Torx socket.

Release the track rod end (2) from the swivel bearing.

Courtesy of BMW OF NORTH AMERICA, INC.

Determine dimension (A) to simplify following adjustment of front axle.

Slacken bolt (1).

Unscrew track rod end.

• Counterhold track rod with open-end spanner if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

Clean track rod.

Undo clamp (1) and clamp (2).

Detach gaiter from track rod.

Courtesy of BMW OF NORTH AMERICA, INC.

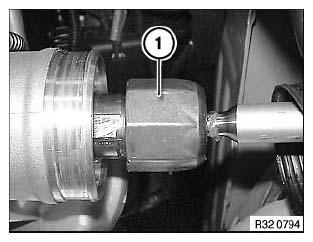

Undo the joint (1) using special tools 32 3 160 at the steering box rack.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clean rack and check surface for damage (e.g. by corrosion).

Tighten joint (1) to the steering gear rack using special tool 32 3 160.

Tightening torque 32 21 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken clamping bolt (1) and screw off track rod end.

Courtesy of BMW OF NORTH AMERICA, INC.

Grease the track rod on the taper using "FB-1 part number 2 208 093" grease.

• This ensures that the gaiter is not rotated when the track rod is rotated.

Pull the gaiter onto the track rod.

Mount the EAR HOSE CLAMP  (1) and clamp (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Screw in track rod end to dimension (A).

Tighten clamping bolt (1).

Tightening torque 32 21 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Keep track rod end to swivel bearing connection clean and free from oil and grease.

Insert the track rod end (2) into the swivel bearing.

Part  : Replace nut (1).

Tighten nut (1).

• If necessary, counter-hold at the Torx socket.

Tightening torque 32 21 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Fit the left or right STEERING ASSEMBLIES COVER .
• Install STIFFENING PLATE .
• Install FRONT WHEEL .
• Perform WHEEL ALIGNMENT CHECK .
