Adjusting rear axle

NOTE: A camber change always means a toe change as well. The camber must therefore be adjusted first.

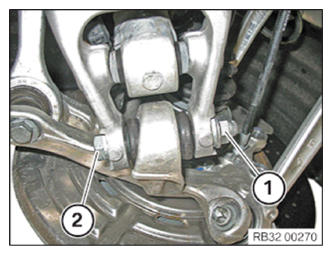

Adjusting camber:

Slacken nut (1).

Replace nut (1).

Parts : Nut

Tighten nut (1) to 5 Nm.

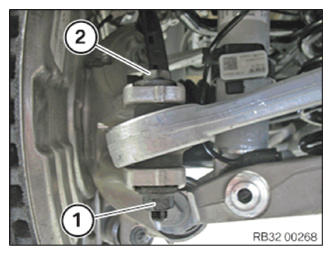

Turn eccentric bolt (2) to adjust camber to setpoint value.

Tighten nut (1).

Tightening torque 33 32 8AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Adjusting toe:

The direction of insertion of the screw (2) must be reversed so that the screw connection can be tightened with the torque wrench after the adjustment.

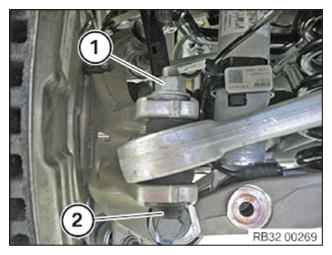

Release nut (1) and remove the eccentric washer and screw (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Install screw (2) in the opposite direction of insertion (from top to bottom) once again.

Replace nut (1).

Parts : Nut

Position the eccentric washer and tighten nut (1) to 5 Nm.

Turn eccentric bolt (2) to adjust toe to setpoint value.

Tighten nut (1).

Tightening torque 33 32 4AZ .
