Replacing wheel bearing for front wheel

Necessary preliminary work:

• Remove BRAKE DISC .

Removal:

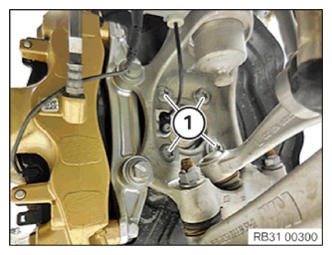

Release screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Remove wheel bearing (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

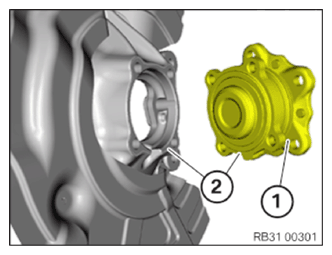

Keep contact surface (2) of swivel bearing and wheel bearing clean and free from oil and grease.

Position wheel bearing (1) on swivel bearing.

Installation note:

When reusing, all the threads on the wheel bearing must be recut.

Courtesy of BMW OF NORTH AMERICA, INC.

Part  : Replace screws (1).

Tighten down screws (1).

Tightening torque 31 21 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install BRAKE DISC .
