Front axle + steering: wheel/chassis alignment check must be carried out after the following work
A WHEEL/CHASSIS ALIGNMENT CHECK must be carried out after the following work:
Release the following screw connections:
- Front axle support to body
- Steering box to front axle carrier
- Lower wishbone to front axle carrier
- Lower wishbone to swivel bearing
- Tension strut to front axle support
- Tension strut on swivel bearing
- Track rod to steering box
- Track rod end to track rod
- Track rod end to swivel bearing
- Spring strut shock absorber to swivel bearing
- Nut and locknut/self-locking nut

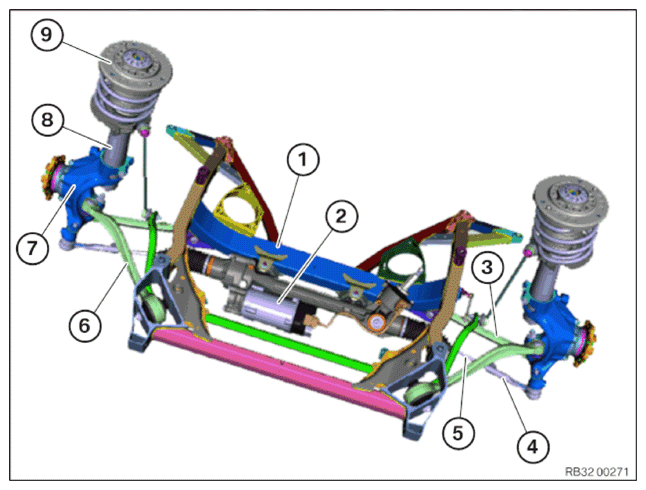

Exchange of following components:
- Front axle support (1)
- Steering box (2)
- Wishbone, bottom (3)
- Track rod end (4)
- Track rod (5)
- Tension strut (6)
- Swivel bearing (7)
- Spring strut (8)
- Support bearing (9)
