Replacing rear ride height sensor

Removal:

Courtesy of BMW OF NORTH AMERICA, INC.

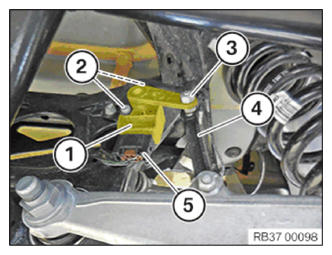

Unscrew nut (3).

Detach jointed rod (4).

Disconnect plug connection (5).

Unfasten screws (2).

Remove ride height sensor (1).

Installation:

Position ride height sensor (1).

Tighten down screws (2).

Tightening torque 37 14 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Attach jointed rod (4).

Part:  Replace nut (3).

Tighten nut (3).

Tightening torque 37 14 4AZ .

Insert connector (5) on ride height sensor (1).

Required follow-up work:

• Check HEADLIGHT ADJUSTMENT , correct if necessary.
