Replacing rear left or right wheel speed accelerator sensor

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

IMPORTANT: Only replace the wheel speed accelerator sensor in conjunction with the cable wheel speed accelerator sensor!

Removal:

Courtesy of BMW OF NORTH AMERICA, INC.

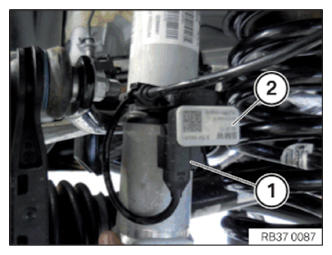

Release connector (1) from the wheel speed accelerator sensor (2).

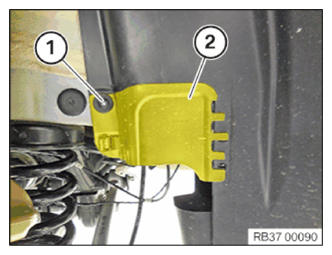

Slacken nut (1).

Remove cover (2).

Courtesy of BMW OF NORTH AMERICA, INC.

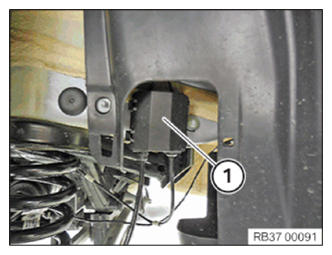

Open lid (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

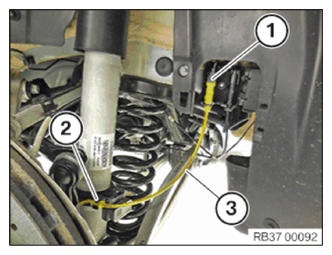

Disconnect connector (1).

Unclip the cable (3) from the holder (2).

Remove (3) cable.

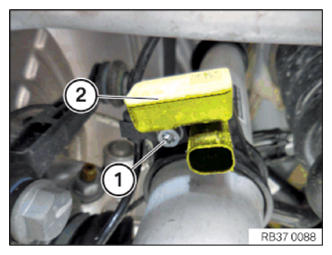

Release screw (1).

Remove (2) wheel speed accelerator sensor.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clip cable (3) into holder (2).

Connect the plug (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Close (1) lid.

Courtesy of BMW OF NORTH AMERICA, INC.

Position cover (2).

Tighten nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.

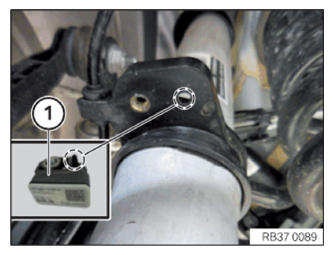

Position the wheel speed accelerator sensor (1) on the shock absorber.

Courtesy of BMW OF NORTH AMERICA, INC.

Part: Replace screw (1).

Tighten screw (1).

Tightening torque 37 14 5AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Connect connector (1) on the wheel speed accelerator sensor (2) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:
