Replacing front ride height sensor
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION)
.

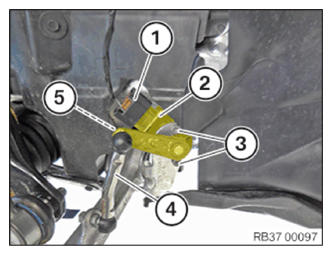

Removal:
Disconnect plug connection (1).
Slacken nut (5).
Detach jointed rod (4).
Release screws (3).
Remove ride height sensor (2).
Installation:
Position ride height sensor (2) on holder.
Tighten down screws (3).
Tightening torque 37 14 3AZ .
Attach jointed rod (4).
Part: Replace nut (5).
Tighten nut (5).
Tightening torque 37 14 4AZ .
Insert connector (1) on ride height sensor (2).
NOTE:
Sensor lever points in direction of travel starting from ride height sensor
Required follow-up work:
- Check HEADLIGHT ADJUSTMENT , correct if necessary.
