Replacing front left or right wheel speed accelerator sensor

Necessary preliminary work:

• Remove FRONT WHEEL ARCH COVER (FRONT SECTION) .

Removal:

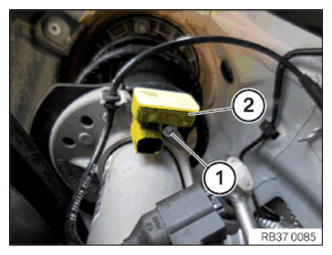

Release connector (1) from the wheel speed accelerator sensor (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

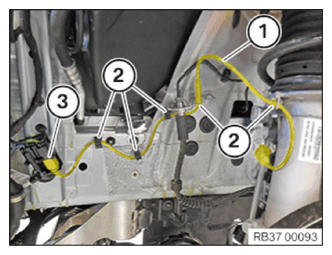

Disconnect connector (3).

Unclip the cable (1) from the holder (2).

Remove (1) cable.

Courtesy of BMW OF NORTH AMERICA, INC.

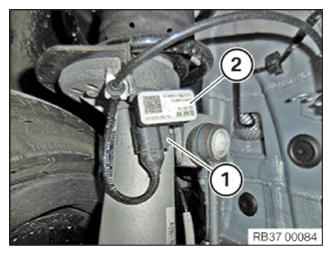

Release screw (1).

Remove sensor (2).

Installation:

Courtesy of BMW OF NORTH AMERICA, INC.

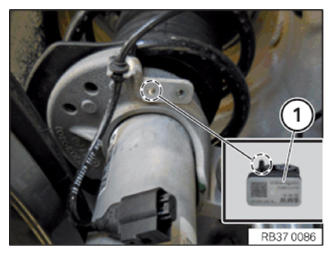

Position wheel speed accelerator sensor (1) on spring strut.

Courtesy of BMW OF NORTH AMERICA, INC.

Part:  Replace screw (1).

Tighten screw (1).

Tightening torque 37 14 5AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Connect connector (1) on the wheel speed accelerator sensor (2) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install FRONT WHEEL ARCH COVER (FRONT SECTION) .
• Use the diagnosis system to perform the wheel speed accelerator sensor adjustment.

-> see service function/start-up VDC
