Removing and installing/replacing control unit for Vertical Dynamic Control (VDC)

Necessary preliminary work:

• Clamp off NEGATIVE BATTERY CABLE .

Removal:

Courtesy of BMW OF NORTH AMERICA, INC.

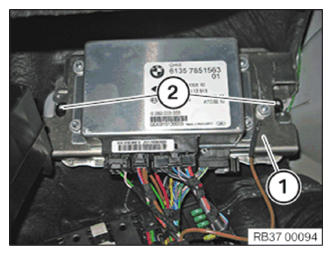

Unscrew nuts (2).

Remove the control unit holder (1) and tilt it forward.

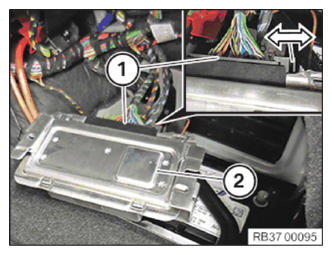

Unlock the connector (1) from the VDC control unit (2) and release.

Courtesy of BMW OF NORTH AMERICA, INC.

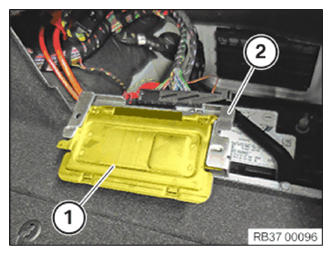

Remove the VDC control unit (1) from the control unit holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Courtesy of BMW OF NORTH AMERICA, INC.

Slide the VDC control unit (1) into the control unit holder (2).

Connect the connector (1) to the VDC control unit (2) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Position the control unit holder (1).

Tighten down nuts (2).

Tightening torque 37 14 6AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Connect the BATTERY EARTH LEAD .
• Replacement only: Carry out PROGRAMMING/ENCODING .
