Removing and installing control unit holder
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .
Necessary preliminary tasks:
- Open flap in luggage compartment panel on right

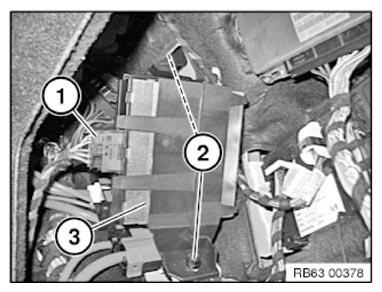

Release plug connections (1) on all control units. Release nuts (2) and remove control unit holder (3).
Installation note:
Ensure that the plug connections (1) are correctly seated.
Ensure that the control unit holder (3) is correctly seated.
