Replacing and installing (replacing) the solar rain/light sensor and condensation sensor

CAUTION: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary work:

Remove inside mirror. Refer to REMOVING AND INSTALLING/REPLACING INTERIOR REARVIEW MIRROR (OVERVIEW) .

Removal:

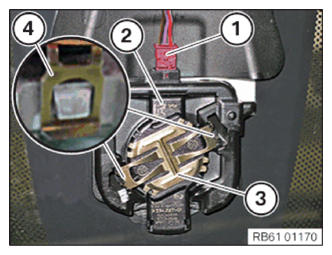

Disconnect connector (1).

Unlock rain/light/solar and condensation sensor (2) at metal spring (3).

For this purpose, press both sides of the metal spring (3), insert the screwdriver (4) on the side and raise the latch mechanism.

CAUTION: Risk of damage!
After loosening lock, wait approx. 30 min. at 20°C for silicone surface to relax.

Courtesy of BMW OF NORTH AMERICA, INC.

Pull the rain/light/solar and condensation sensor (1) slowly from holder (2) in direction of arrow.

NOTE: When replacing the windscreen, only remount the rain/light/solar and condensation sensor (1) after disassembly of the windscreen.
Pull off the rain/light/solar and condensation sensor (1) slowly while observing from outside the release of the silicone surface.
The silicone surface must evenly loosen from the windscreen, if applicable, pull off slower.

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Risk of damage!
The silicone-coated surface (1) and the printed circuit board (2) on the rain/light/solar and condensation sensor must not be touched or damaged!
Replace damaged gel pad.
When replacing the windscreen, immediately install the rain/light/solar and condensation sensor into the new windscreen following removal.

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Risk of damage!
The area (1) on the windscreen must not be touched or damaged!
The area (1) may have remnants of the separation oil of the rain/light/solar and condensation sensor that are easy to remove. This does not indicate that the rain/light/solar and condensation sensor is damaged.
Remove all separating oil residue within and outside of the area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carefully clean the windscreen at the contact area (1) with the rain/light/solar and condensation sensor! All silicone and separation oil residue must be removed!

Courtesy of BMW OF NORTH AMERICA, INC.

Remove protective cover (1) from new rain/light/solar and condensation sensor.

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: The silicone-coated surface (1) and the printed circuit board (2) on the rain/light/solar and condensation sensor must not be touched or damaged!

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

CAUTION: Risk of damage!
The silicone-coated surface on the rain/light/solar and condensation sensor must not be touched or damaged.

Feed the rain/light/solar and condensation sensor (1) into holder (2) in direction of arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Connect connector (1) only after the rain/light/solar and condensation sensor has been locked.

Press on the rain/light/solar and condensation sensor (2) at the metal spring (3) in a centered position.

To lock, consecutively press down both sheet metal tabs (4) on each side.

Connect connector (1) with the rain/light/solar and condensation sensor (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Visible shades (1 and 2) do not have any air pockets, but show the optical element of the sensor.

Visible shades (1 and 2) do not represent any functional limitation.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

For F2x; (not F25/F26); F3x and F80/F82/F83: the encoding is automatically implemented by JBBFE .

Initialization and encoding are performed automatically by BDC control unit.

Required follow-up work:

Install interior mirror. Refer to REMOVING AND INSTALLING/REPLACING INTERIOR REARVIEW MIRROR .
