Removing and installing/replacing switch for soft top operation (M4 Convertible)

Necessary preliminary tasks:

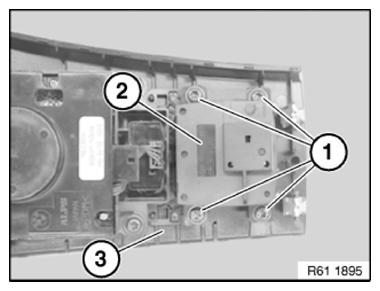

Release screws (1).

Remove switch (2) from trim (3).

G09863450Courtesy of BMW OF NORTH AMERICA, INC.
