Removing and installing/replacing emergency starting coil

Necessary preliminary tasks  :

• Remove STEERING COLUMN SHROUD LOWER SECTION .

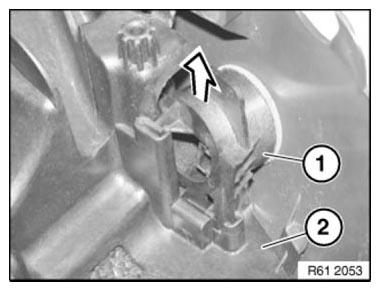

Release emergency starting coil (1) and pull in direction of arrow out of steering column shroud (2).

Installation note:

Make sure emergency starting coil (1) is correctly seated.

Courtesy of BMW OF NORTH AMERICA, INC.
