Removing and installing/replacing center console operating facility (Except M4 CS)
Necessary preliminary tasks:
Version with manual gearbox only:
- Partially remove GEARSHIFT LEVER GAITER .
Version with automatic transmissions only:
- Remove COVER FOR SELECTOR LEVER .
IMPORTANT:
Risk of damage
!
Center console operating facility must not be pried out from the outside.
Center console operating facility must not be pried out from the outside.
NOTE:
Graphic shows example of F20 with automatic transmission.
- Reach under front section of operating facility (1).
- Press front latch mechanism in direction of arrow and simultaneously raise operating facility (1) towards top.
- Disconnect associated plug connection and remove operating facility (1).
Installation note:

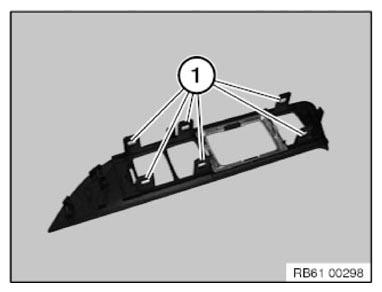

Latch mechanisms (1) must not be damaged or missing.
Make sure operating facility is correctly fitted in center console.
In case of replacement, remount operating unit cover:

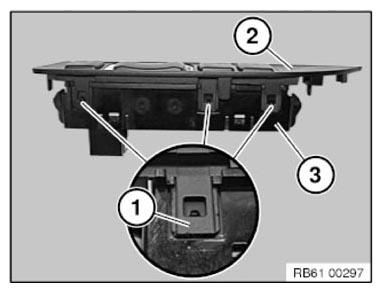

Release latch mechanism (1) and remount cover (2), depending on equipment.

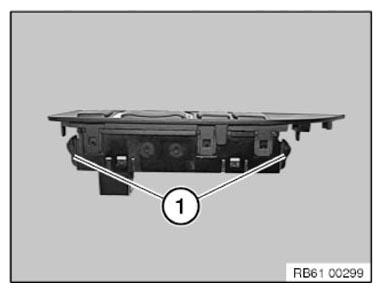

Installation note:
Latch mechanisms (1) must not be damaged or missing.
