Removing and installing operating element for assist system

Special tools required:

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

NOTE: Work shown on the F30 by way of example, deviations in detail are possible in other models.

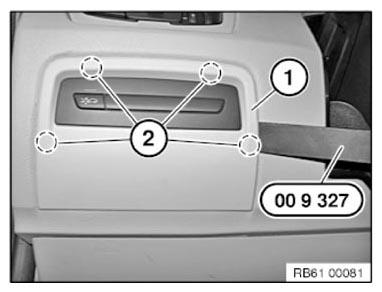

Carefully release cover (1) from clamps (2) with special tool 00 9 327.

Disconnect associated plug connection and remove cover (1).

Installation note:

Make sure cover (1) is correctly seated.

Courtesy of BMW OF NORTH AMERICA, INC.

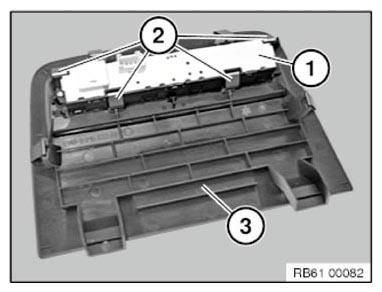

Remove operating element (1) by releasing retaining clips (2) from cover (3).

Installation note:

Make sure operating element (1) is correctly seated in cover (2).

Courtesy of BMW OF NORTH AMERICA, INC.

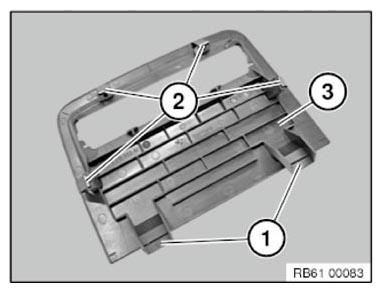

Installation note:

Guides (1) and clamps (2) on cover (3) must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.
