Remove and install or replace battery (Except M4 Convertible)

To ensure the correct safety and convenience functions, install only the original battery (battery size and type) stored in the vehicle order. OBSERVE NOTE ON BATTERY REPLACEMENT .

Necessary preliminary work:

• Clamp off BATTERY LEAD FROM NEGATIVE CONNECTION POINT .

Removal:

Fold up cover (1) on safety battery terminal (2).

Loosen nut (3).

Tightening torque 61 21 1AZ .

Pull off safety battery terminal (2) towards top, lay to one side and secure.

Courtesy of BMW OF NORTH AMERICA, INC.

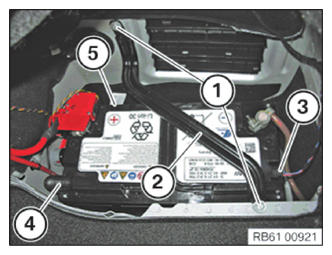

Release screws (1) and remove retaining bracket (2).

Unlock connector (3) and disconnect.

Pull vent hose (3) off the battery (5).

Courtesy of BMW OF NORTH AMERICA, INC.

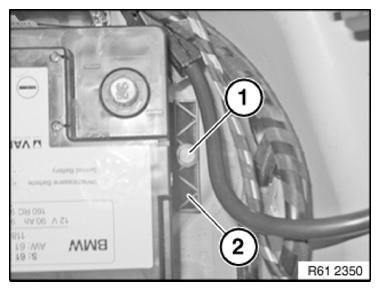

Release screw (1) and remove with holder (2).

Remove battery.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Join battery.

Join holder (2) and tighten with screw (1).

Tightening torque 61 21 5AZ .

Installation note:

Make sure battery is correctly fitted in fixture.

Courtesy of BMW OF NORTH AMERICA, INC.

Insert retaining bracket (2) and tighten with screws (1).

Tightening torque 61 21 5AZ .

Connect connector (3) to battery (5).

Connect vent hose (4) to battery (5).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

The battery has two vent holes:

• One vent hole (1) must be closed correctly with a dummy plug.
• The vent hose (3) must be connected correctly at the other vent hole (2).

Always install the vent hose (3) with a downhill gradient to the outside!

No siphon formation!

Courtesy of BMW OF NORTH AMERICA, INC.

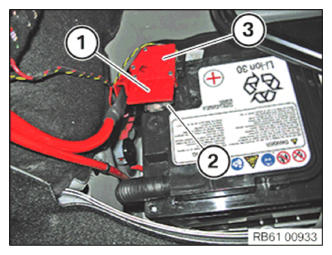

Attach the safety battery terminal (3) on the positive battery terminal.

Tighten the nut (2).

Tightening torque 61 21 1AZ .

Close cover (1) on safety battery terminal (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

• REGISTER BATTERY EXCHANGE .

Required follow-up work:

• Connect BATTERY CABLE NEGATIVE TERMINAL .
