Removing and installing/replacing distribution box (rear)

WARNING: Observe SAFETY INSTRUCTIONS for handling vehicle battery.

Necessary preliminary tasks:

Clamp off BATTERY LEAD FROM NEGATIVE CONNECTION POINT

NOTE: Graphics shown on the F20 by way of example, deviations in detail are possible in other models.
Remove luggage compartment floor trim panel (1) in direction of arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

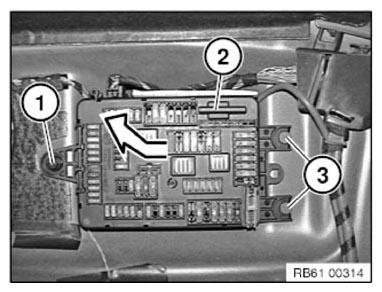

Slacken nut (1).

Tightening torque 61 35 8AZ .

Remove power distribution box (2) from guide (3) in direction of arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

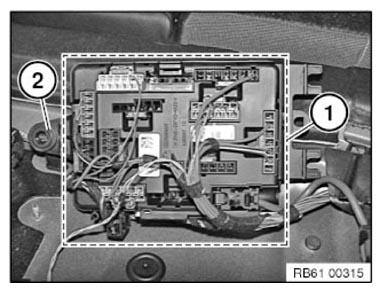

Release and disconnect all plug connections in area (1).

Remove power distribution box (2)

Installation note:

Make sure all plug connections are correctly locked.
