Removing and installing/replacing outside temperature sensor

Necessary preliminary work:

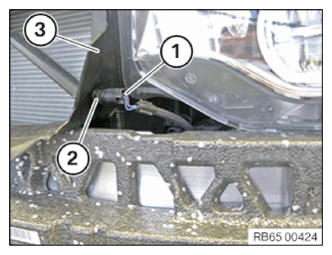

G13694679Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Pull out outside temperature sensor (2) from air duct (3).
