Removing and installing/replacing airbag control unit
WARNING:
Observe safety instructions for handling AIRBAGS AND COMPONENTS WITH GAS GENERATORS
.
Incorrect handling can activate airbag and cause injury.
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION)
.
Necessary preliminary tasks:
- Disconnect BATTERY EARTH LEAD .
- Remove TRIM PANEL FOR PEDAL MECHANISM .

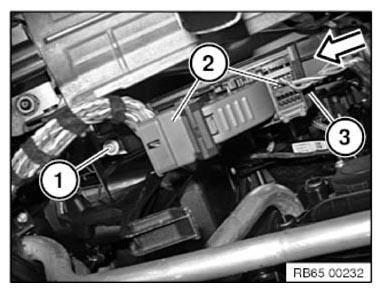

Release screw (1).
Tightening torque 65 77 1AZ .
Unlock plug connections (2) and disconnect.
Pull airbag control unit (3) out of holder in direction of arrow.
Replacement:
Carry out VEHICLE PROGRAMMING/ENCODING .
