Removing and installing (replacing) left B-pillar sensor
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION)
.
WARNING:
Observe safety instructions for handling AIRBAGS AND COMPONENTS WITH GAS GENERATORS
.
Incorrect handling can activate airbag and cause injury.
Necessary preliminary tasks:
- Disconnect BATTERY EARTH LEAD and cover.
- Remove REAR SIDE TRIM PANEL .

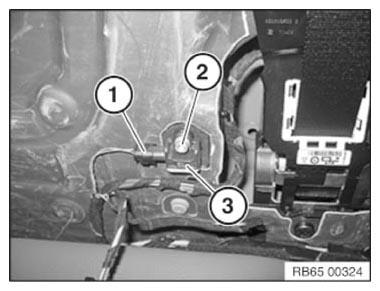

Unfasten plug connection (1) and disconnect.
Release screw (2).
Tightening torque 65 77 3AZ .
Remove sensor (3).
