Replacing module for interior movement detector on left or right front door (M4 Convertible)
CAUTION:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION)
.
Necessary preliminary work:
- Remove FRONT DOOR TRIM PANEL on the left or right.
Removal:

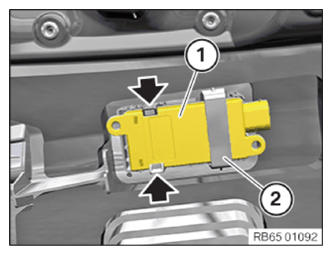

Unlock the locks (arrows).
Guide the microwave sensor (1) out of the holder (2) and remove.
Installation:
Feed in the microwave sensor (1) into the holder (2) and position it correctly.
Lock the locks (arrows).
NOTE:
Locks (2) must not be damaged or missing.
Required follow-up work:
- Install the FRONT DOOR TRIM PANEL on the left or right.
Replacement:
Carry out vehicle PROGRAMMING AND ENCODING .
