Removing and installing/replacing amplifier (hi-fi system/Harman Kardon)

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

NOTE: Comply with notes on HANDLING OPTICAL FIBRES .

Necessary preliminary tasks:

Slacken nut (1).

Unlock catch (2).

Remove cover (3).

Installation note:

Make sure cover (3) is correctly seated.

Courtesy of BMW OF NORTH AMERICA, INC.

Version with TV module or DVD changer :

Unscrew nut (1) and bolts (2).

Take off holder (3).

Courtesy of BMW OF NORTH AMERICA, INC.

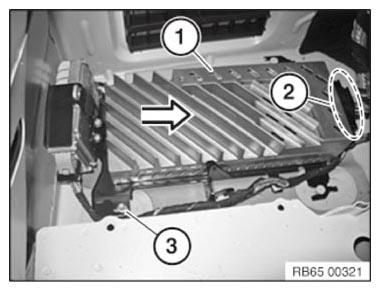

Unscrew nut (3).

Unlock plug connections (2) and disconnect.

Remove amplifier (1) with holder in direction of arrow.

Installation note:

Make sure amplifier (1) is correctly seated.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release screw (1).

Pull amplifier (2) out of holder (3) in direction of arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Lugs (1) must be correctly slid into guide (2).

Check that amplifier (3) is securely seated.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement :

In Harman Kardon version, perform the vehicle PROGRAMMING AND ENCODING .
