Removing and installing/replacing evaporator

Special tools required:

00 9 030

Necessary preliminary work:

Remove HEATER/AIR CONDITIONER .

Courtesy of BMW OF NORTH AMERICA, INC.

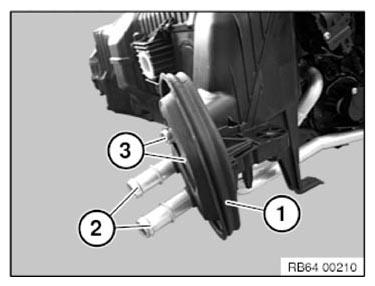

Carefully pull rubber grommet (1) and foam seal below it over pipes (2) and (3).

NOTE: If necessary, replace damaged rubber grommet (1) and/or foam seal.

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Unlock plug connection (4) and disconnect.

Remove actuator drive (2).

Installation note:

Make sure actuator drive (2) is correctly seated in guide (3).

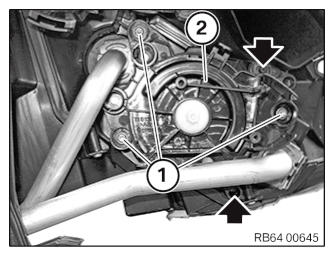

Release screws (1) and remove holder (2) for controller drive.

Installation note:

Make sure flap mechanism is correctly seated (see arrows in illustration).

Courtesy of BMW OF NORTH AMERICA, INC.

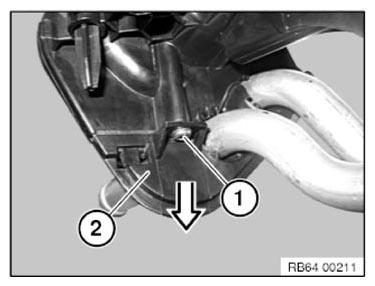

Release screw (1).

Open holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen clasp (1).

Remove double-pipe (2).

Installation note:

Replace clasps (1) and sealing rings.

Use special tool 00 9 030 to install sealing rings without damaging them.

Courtesy of BMW OF NORTH AMERICA, INC.

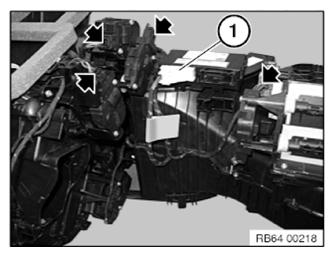

Release plug connections - actuator drives at the marked points and disconnect.

Unfasten plug connection - control unit (1) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.

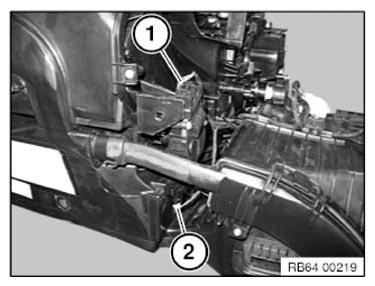

Unfasten plug connection - actuator drive (1) and disconnect.

Disconnect the plug connection - temperature sensor (2) and remove the temperature sensor out of the heating and air-conditioning unit.

Courtesy of BMW OF NORTH AMERICA, INC.

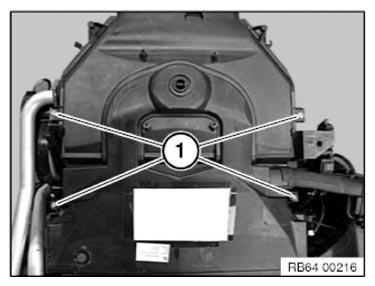

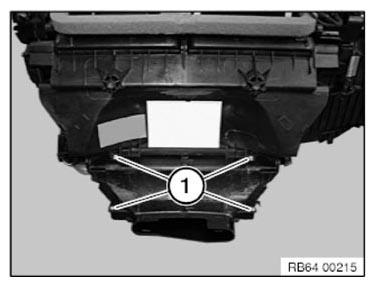

Release screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

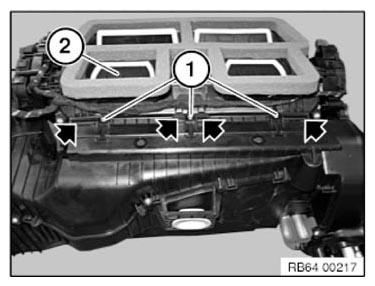

Release screws (1).

Unlock the distributor housing (2) at the marked points.

Remove distributor housing (2).

Installation note:

Ensure that the distributor housing (2) is correctly seated and locked.

Courtesy of BMW OF NORTH AMERICA, INC.

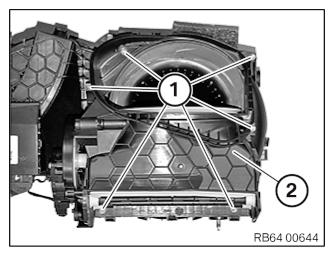

Release screws (1).

Unlock latch mechanisms using a slotted screwdriver.

Remove housing (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws in marked area.

Courtesy of BMW OF NORTH AMERICA, INC.

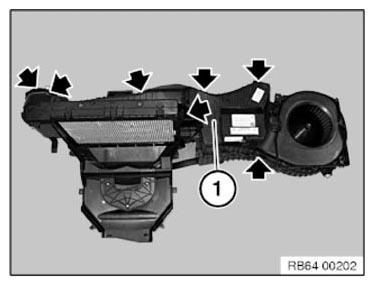

Unlock the latch mechanisms (3) in the marked areas with a slotted screwdriver (2) (approx. 3 mm blade).

Remove upper housing section (1).

Courtesy of BMW OF NORTH AMERICA, INC.

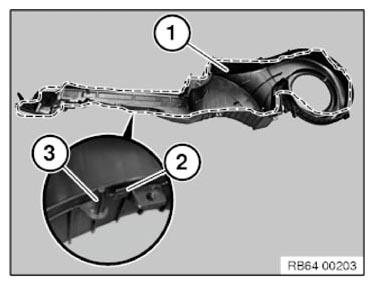

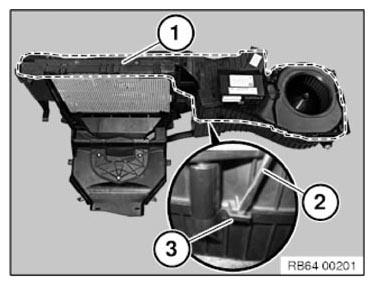

Installation note:

Retaining lugs (2) and guide pins (3) must not be damaged.

In the event of damage, replace the complete empty housing (1).

Courtesy of BMW OF NORTH AMERICA, INC.

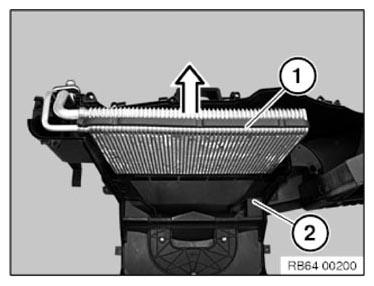

Pull evaporator (1) in direction of arrow out of lower housing section (2) of heating and air-conditioning unit.

Installation note:

Ensure evaporator (1) is correctly seated in lower housing section (2) of heating and air-conditioning unit.

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

Do not bend the evaporator fins.

If necessary, clean or straighten evaporator fins with slat comb.
