Replacing actuator drive for left ventilation flap (High A/C system)
Necessary preliminary tasks:
- Remove INSTRUMENT PANEL TRIM .
NOTE:

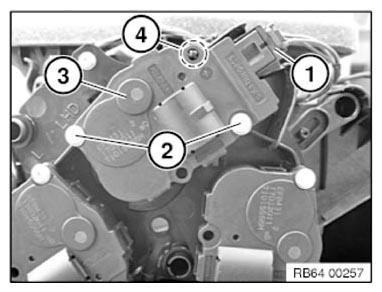

For purposes of clarity, illustration shows removed heating and air-conditioning unit.
Unfasten screws (2).
Remove actuator drive (3).
Unfasten plug connection (1) and disconnect.
Installation note:
Make sure actuator drive (3) is correctly seated in the guide (4).
Replacement:
Servomotors must be readdressed in the event of replacement!
Addressing can only be carried out with the BMW diagnosis system.
Service functions:
- Body
- Heating and air conditioning function
- Flap motors
- Readdress flap motors
