Removing and installing/replacing heater/air conditioner fan

Necessary preliminary tasks:

• Dismantle INSTRUMENT PANEL TRIM AT BOTTOM RIGHT .

Removal:

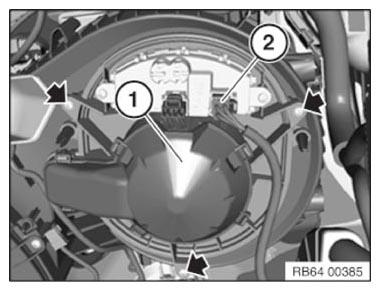

Unlock plug connections (2) and disconnect.

Release screws at marked points.

Remove blower (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install the blower (1).

Evenly tighten marked screws.

Tightening torque 64 31 2AZ .

Connect and lock the plug connections (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Install INSTRUMENT PANEL TRIM, BOTTOM RIGHT .
