Removing and installing/replacing footwell temperature sensor (right)

Necessary preliminary tasks:

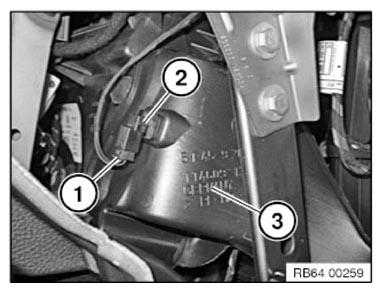

Unfasten plug connection (1) and disconnect.

Remove temperature sensor (2) from air duct (3).

G10098848Courtesy of BMW OF NORTH AMERICA, INC.
