Removing and installing/replacing actuator drive for fresh/recirculated air flap
Necessary preliminary tasks:
NOTE:

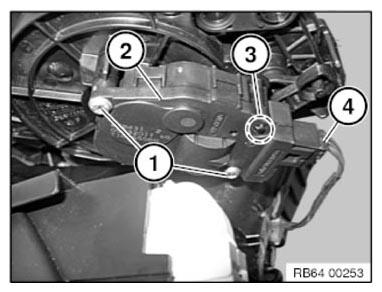

For purposes of clarity, illustration shows removed heating and air-conditioning unit.
Release screws (1).
Pull off actuator drive (2).
Unlock plug connection (4) and disconnect.
Installation note:
Make sure actuator drive (2) is correctly seated in guide (3).
IMPORTANT:
Servomotors must be readdressed in the event of replacement!
Addressing can only be carried out with the BMW diagnosis system.
Service functions:
- Body
- Heating and air conditioning function
- Flap motors
- Readdress flap motors
