Removing and installing/replacing actuator drive for blending flap (right)

Necessary preliminary tasks:

• Remove GLOVE BOX .

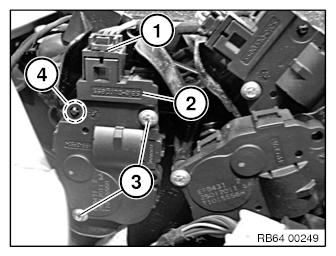

Release screws (3).

Unfasten plug connection (1) and disconnect.

Remove actuator drive (2).

Installation note:

Make sure actuator drive (2) is correctly seated in guide (4).

Courtesy of BMW OF NORTH AMERICA, INC.

Servomotors must be readdressed in the event of replacement!

Addressing can only be carried out with the BMW diagnosis system.

Service functions:

• Body
• Heating and air conditioning function
• Flap motors
• Readdress flap motors
