Removing and installing/replacing actuator drive for blending flap (left)
Necessary preliminary tasks:
- Remove INSTRUMENT PANEL TRIM .
NOTE:

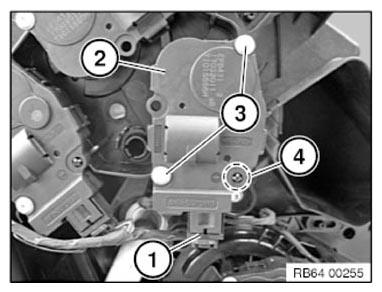

For purposes of clarity, illustration shows removed heating and air conditioning unit.
Release screws (3).
Remove actuator drive (2).
Unfasten plug connection (1) and disconnect.
Installation note:
Make sure actuator drive (2) is correctly seated in guide (4).
IMPORTANT:
Servomotors must be readdressed in the event of replacement!
Addressing can only be carried out with the BMW diagnosis system.
Service functions:
- Body
- Heating and air conditioning function
- Flap motors
- Readdress flap motors
