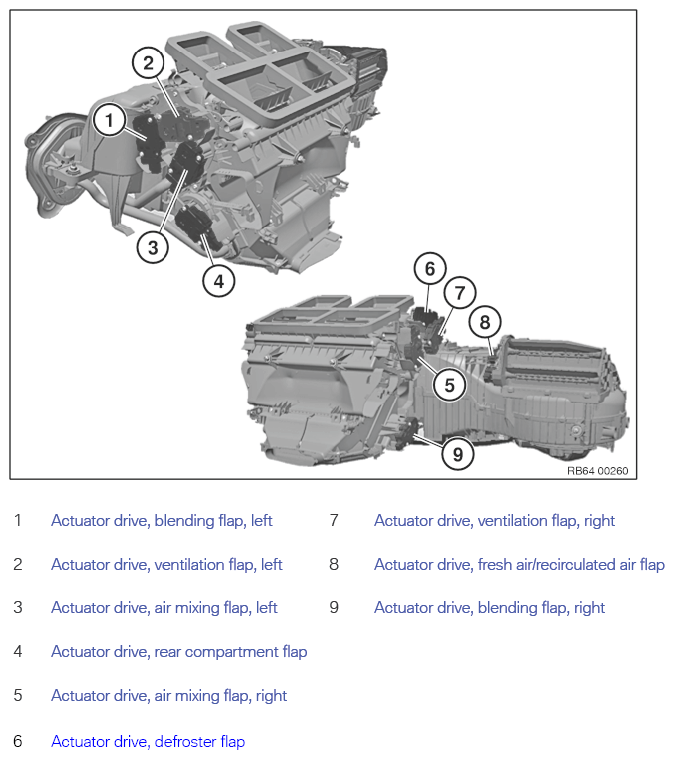

Overview of actuator drives on heater/air conditioner

G13805968

Courtesy of BMW OF NORTH AMERICA, INC.
