51 24 130 Removing and installing/replacing striker for rear lid lock (Touring)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Open rear lid.

Remove trim (1) on rear lid.

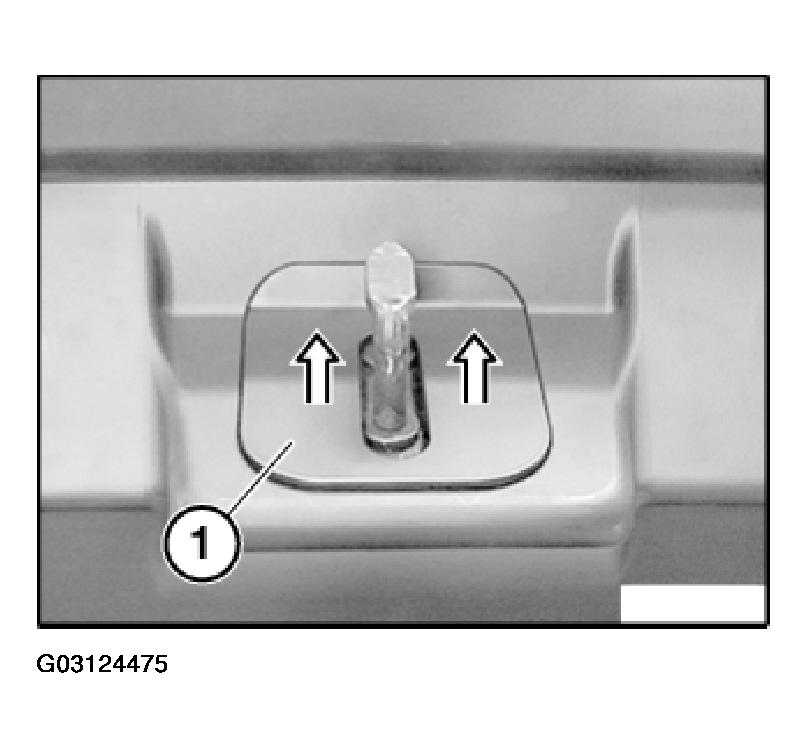

Fig 1: Removing Trim On Rear Lid

G03124475

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) on striker (2).

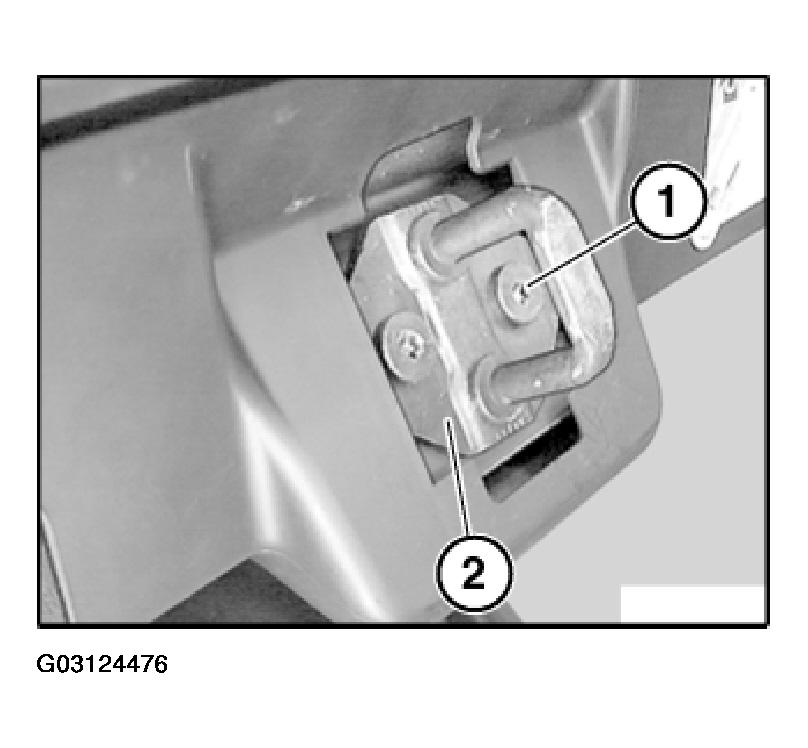

Fig 2: Removing Striker Screws

G03124476

Courtesy of BMW OF NORTH AMERICA, INC.

Screw threaded pin (1) into threaded plate of striker (2).

Unscrew bolt (3).

Remove striker (2) from rear lid panel (4).

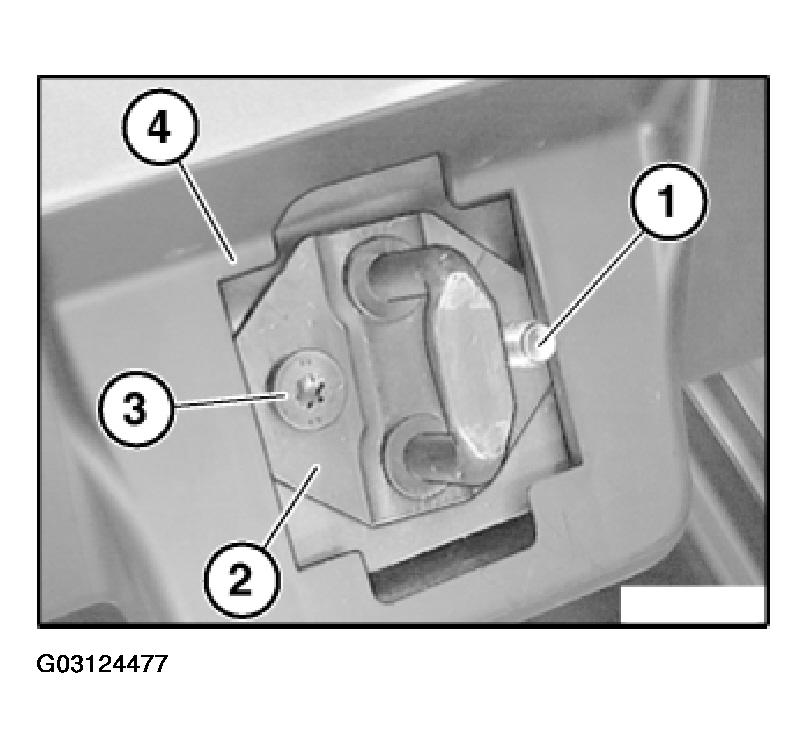

Fig 3: Removing Striker From Rear Lid Panel

G03124477

Courtesy of BMW OF NORTH AMERICA, INC.

Threaded pin (1) remains in threaded plate (2) until striker is fitted.

IMPORTANT: Do not close trunk lid, risk of damage.

Installation:

Adjust striker to lower section of trunk lid lock.

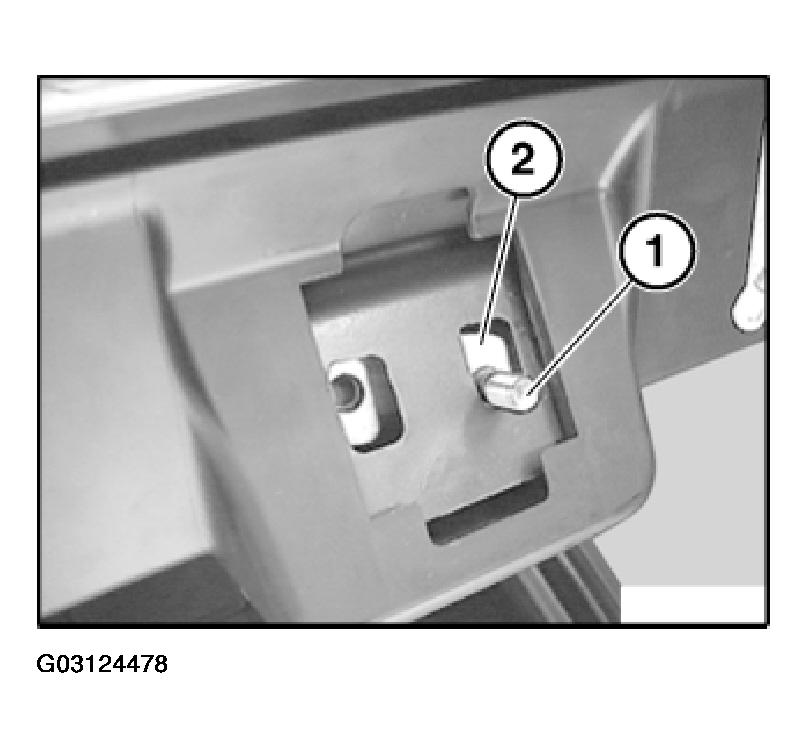

Fig 4: Identifying Threaded Pin On Threaded Plate

G03124478

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Striker and rear lid lock must not be greased.
