51 43 148 Removing and installing or replacing trim on left or right door pillar (top)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove panel for door pillar (bottom). See 51 43 150 Removing and installing or replacing trim for left or right door pillar (bottom)

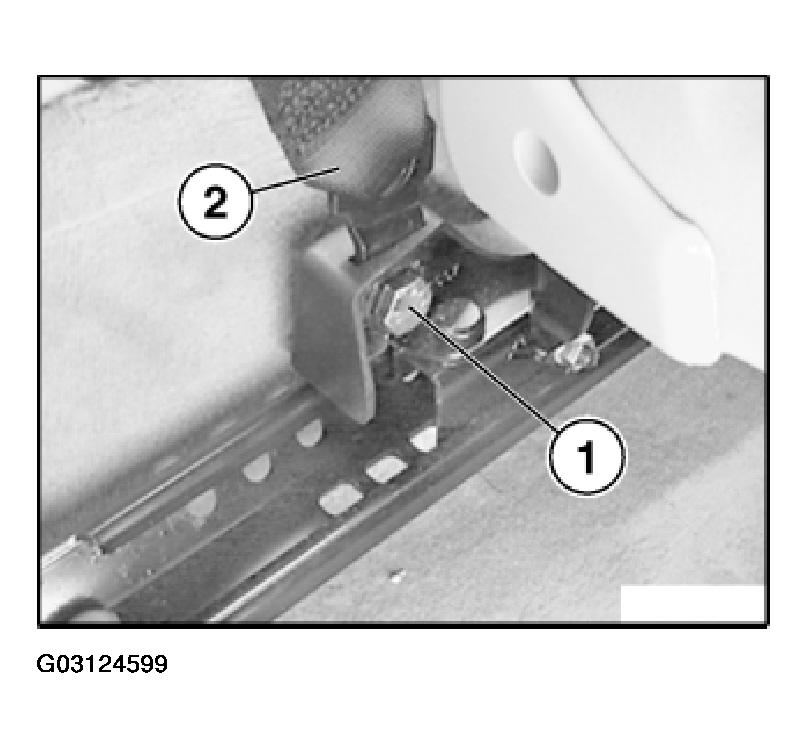

Release seatbelt screw (1) on front seat and feed out seatbelt strap (2).

Installation:

Tightening torque. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

Fig 1: Identifying Seatbelt Screw & Seatbelt Strap

G03124599

Courtesy of BMW OF NORTH AMERICA, INC.

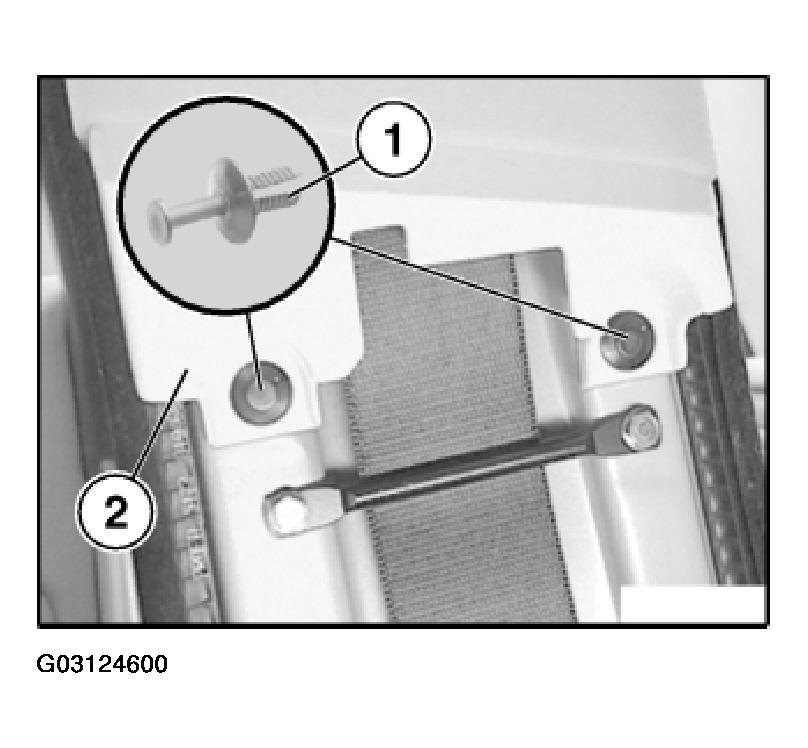

Release expansion rivets (1) on panel (2).

Fig 2: Releasing Expansion Rivets On Panel

G03124600

Courtesy of BMW OF NORTH AMERICA, INC.

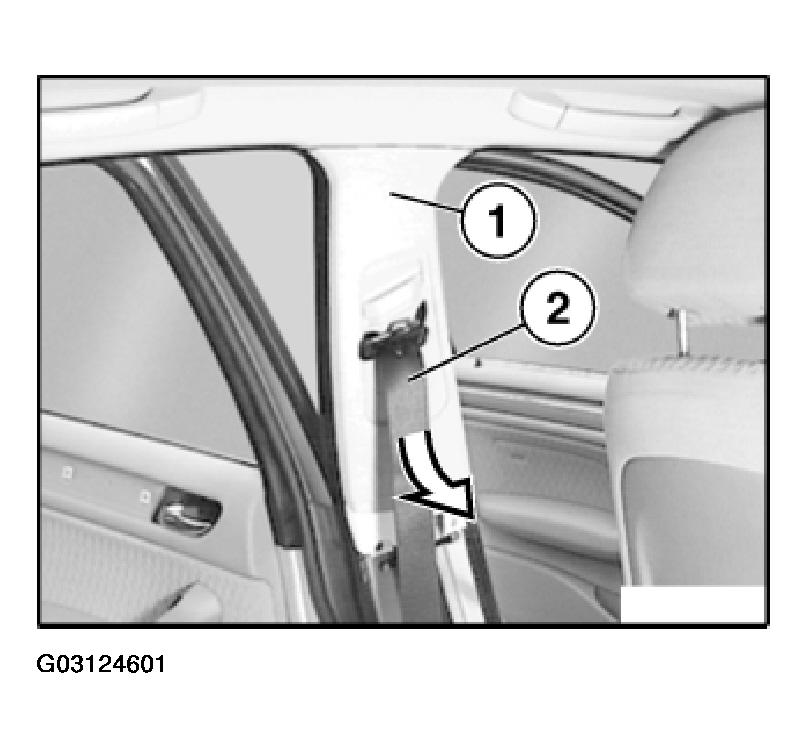

Pull off door pillar trim panel (1) at top towards bottom. Feed out seatbelt strap (2).

Fig 3: Removing Seatbelt Strap

G03124601

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

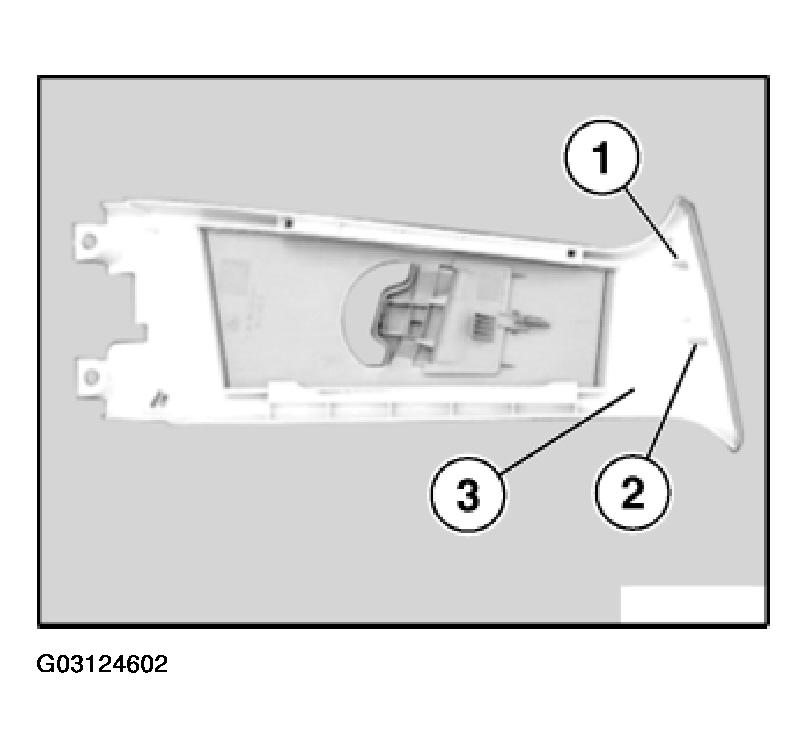

Locator (1) and guide (2) on panel (3) must not be damaged.

Fig 4: Identifying Locator & Guide On Panel

G03124602

Courtesy of BMW OF NORTH AMERICA, INC.
