51 22 330 Removing and installing/replacing window cavity cover strip on inside rear door: Installation:

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

If necessary, remove faulty clips (3) from inner door panel and replace.

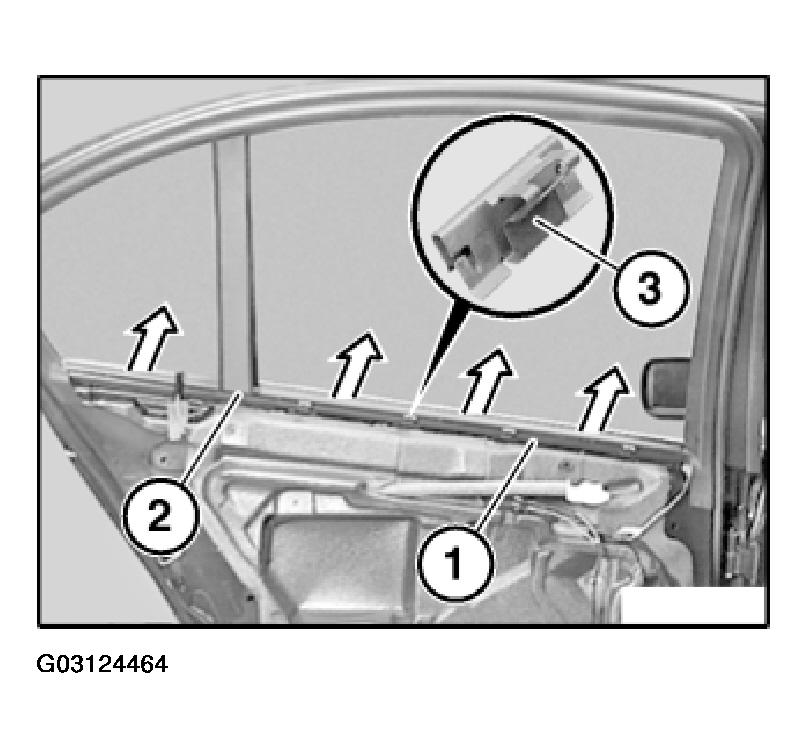

Fig 1: Removing Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Prior to installation, coat window cavity cover strip (1) with soapy solution (washing-up liquid).

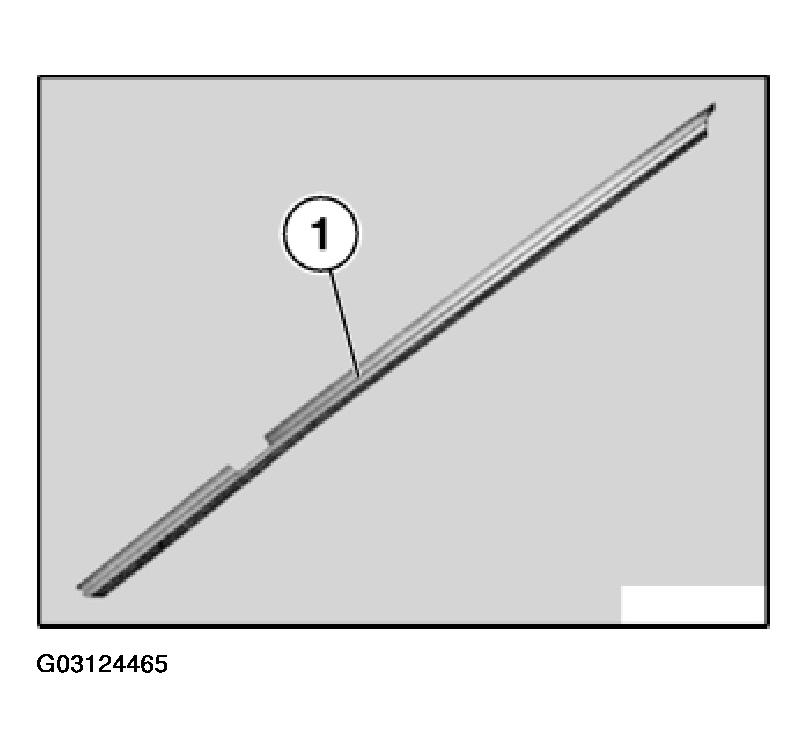

Fig 1: View Of Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Window cavity cover strip (1) must (as shown in illustration) be above cover (2) for door window frame.

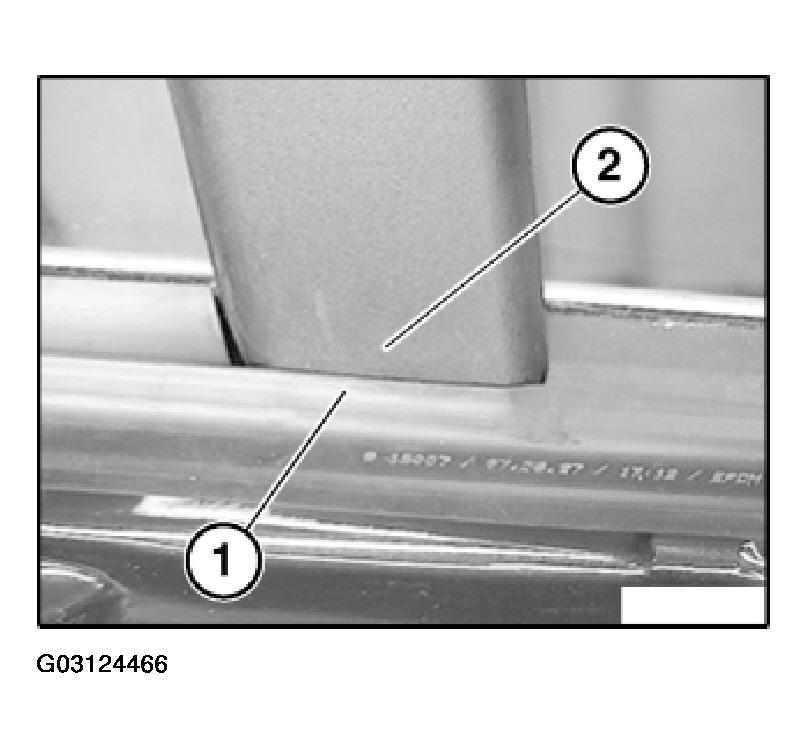

Fig 1: Identifying Position Of Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.
