51 22 280 Removing and installing/replacing door stop on rear left or right door: Notes

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Raise the door window.

Disconnect battery negative lead.

NOTE: To release or partially detach sound insulation, follow procedure in "Removing and installing/replacing sound insulation on front left or right door", refer to 51 48... REMOVING AND INSTALLING/REPLACING SOUND INSULATION IN FRONT DOOR, LEFT OR .

Partially detach sound insulation at front and secure with adhesive tape (1).

Unscrew bolt(1).

Remove seal (2) towards rear and detach from door brake (3).

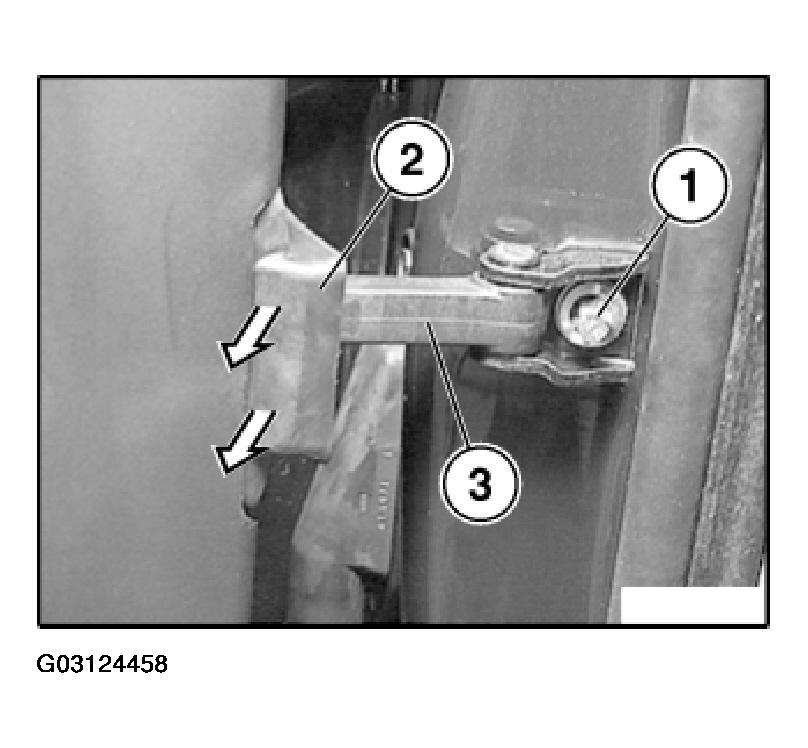

Fig 1: Detaching Seal From Door Brake

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For removal, fold back screw plate (1).

Release screws (2) and feed out door brake (3) to inner door panel.
