51 22 090 Removing and installing/replacing door lock in left or right rear door (from 09/00): Notes

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The work is identical for all E46 4-door models from year of manufacture 09/2000.

A 4 mm A/F Allen key is required for adjustment.

Raise the door window.

Remove sound insulation on rear door. See 51 48... Removing and installing/replacing sound insulation in rear door, left or right

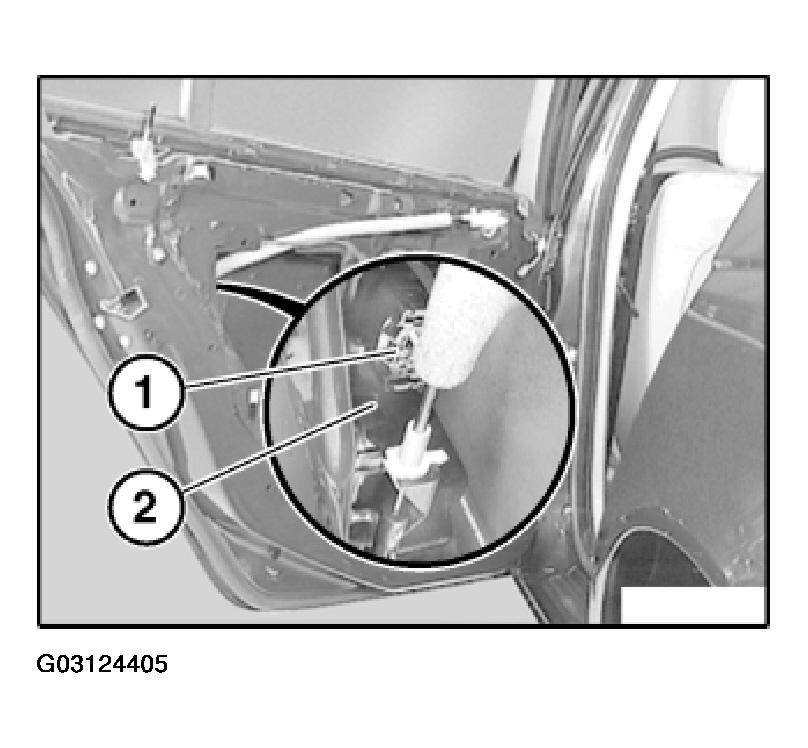

Disconnect plug connection (1) on door lock (2).

Fig 1: Disconnecting Plug Connection On Door Lock

Courtesy of BMW OF NORTH AMERICA, INC.

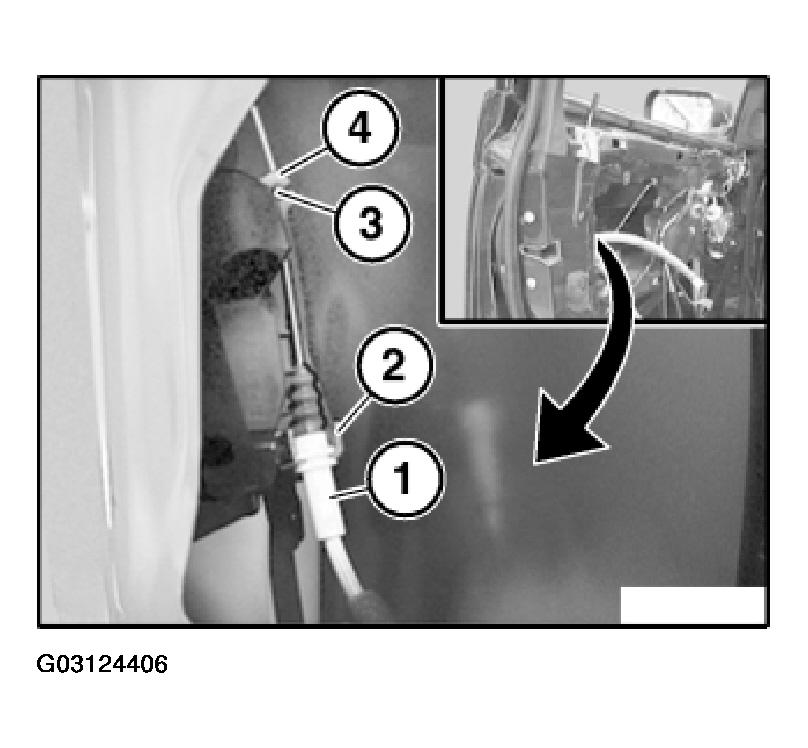

Lever out Bowden cable (1) from holder (2) with screwdriver.

CAUTION: Do not bend holder (2).

Unhook Bowden cable nipple (3) from lever (4).

Fig 2: Unhooking Bowden Cable Nipple From Lever

Courtesy of BMW OF NORTH AMERICA, INC.

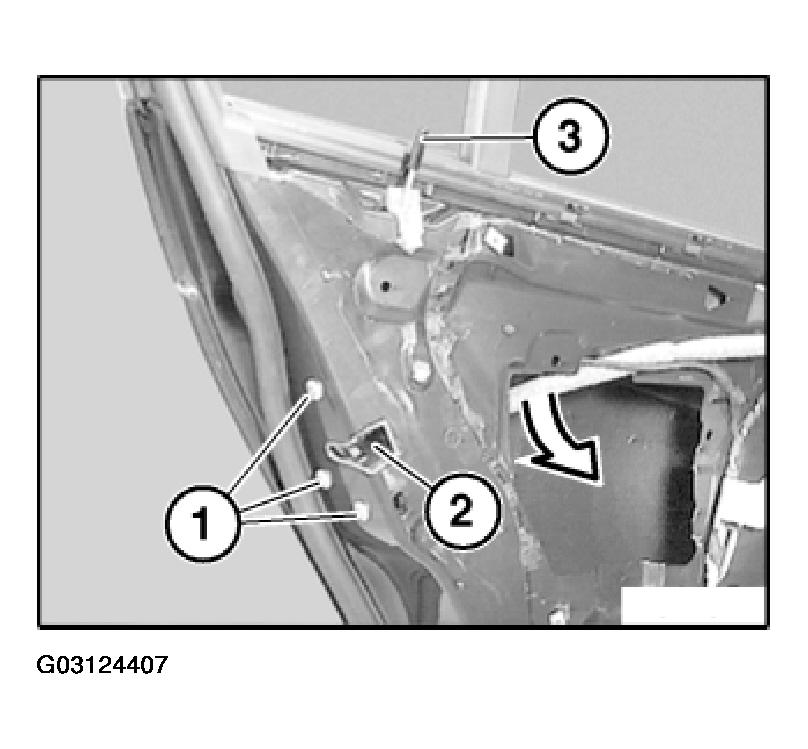

Release screws (1).

Remove door lock (2) with linkage (3).

Installation:

Insert linkage for locking knob through opening in inner door plate.

Do not bend linkage (3).

Replace screws (1).

Tightening torque. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

Fig 3: Removing Door Lock With Linkage

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Do not close door while installing door lock and cover. It is not possible to open the door when the adjusting screw is released.
Secure door against closing.

Installation:

Left door lock of rear door:

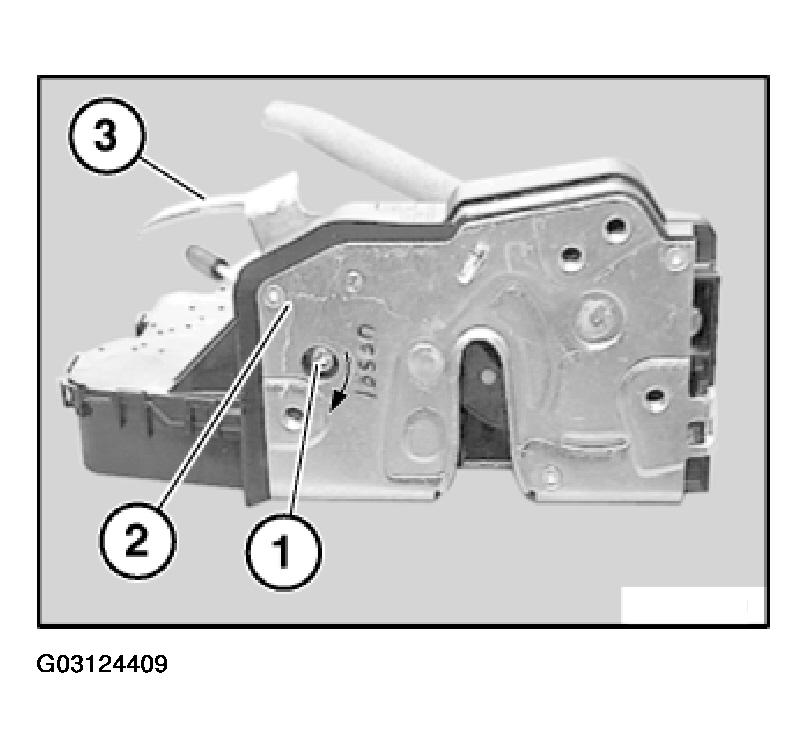

Slacken adjusting screw (1) on door lock (2) (turn counterclockwise, as shown in illustration), the Bowden cable mount (3) can thus be moved.

Fig 4: Installing Adjusting Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Right door lock of rear door:

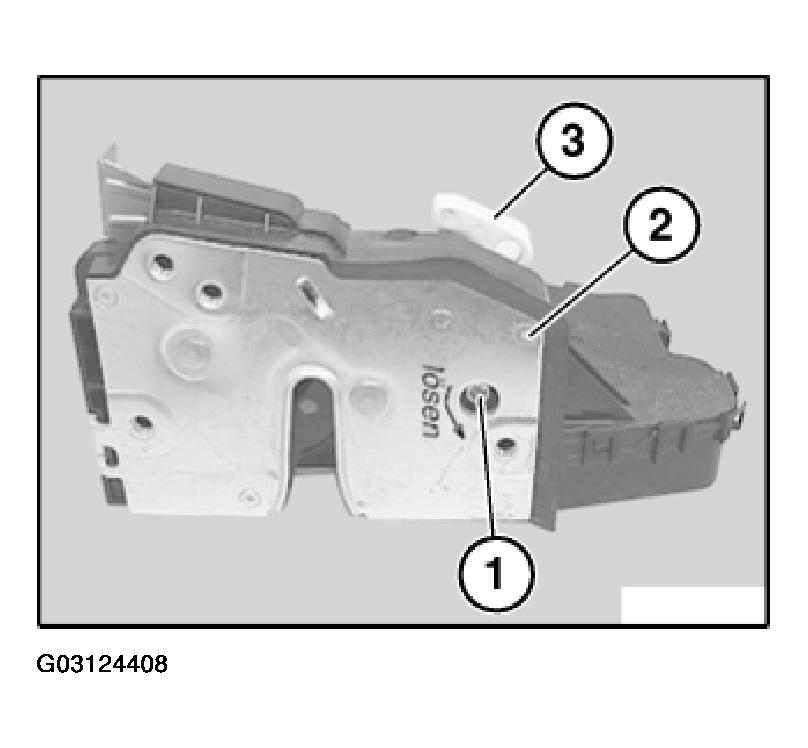

Slacken adjusting screw (1) on door lock (2) (turn clockwise, as shown in illustration), the Bowden cable mount (3) can thus be moved.

NOTE: The Bowden cable mount (3) is still shown in the illustration as lock lever (3), but is similar to that in Fig. R51 2807.

Fig 5: Installing Right Door Lock Of Rear Door

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Lever out sealing cap (1).

Tighten down adjusting screw (2) on door lock and fit sealing cap (1).
