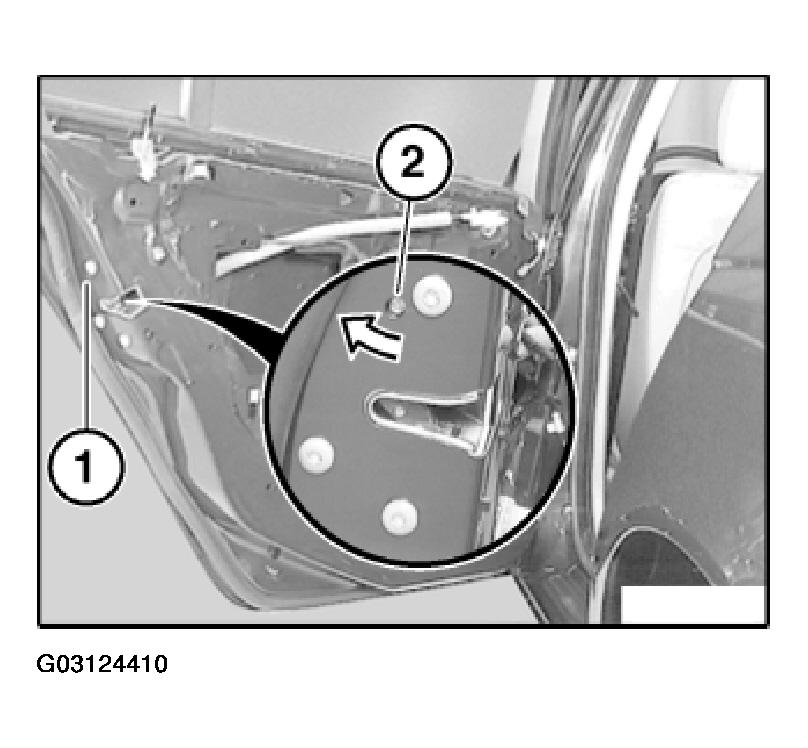

Direction of rotation of adjustment screw (2):
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.
ADJUSTING SCREW ROTATION DIRECTION
| Left rear door | Right rear door |
|---|---|
| Tighten down adjusting screw (2) in clockwise direction, as shown in illustration. | Tighten down adjusting screw (2) in counterclockwise direction. |
Tightening torque. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .
CAUTION:
Carry out function check only with door open.
If door is closed
and the setting at the rotary striker lock is incorrect, it may not be possible to open door any more and the door trim panel must be destroyed.
If door is closed
and the setting at the rotary striker lock is incorrect, it may not be possible to open door any more and the door trim panel must be destroyed.
