51 34 420 Removing and installing/replacing trim on window frame of rear door (front), left or right

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

For removal and installation only, not for adjustment:

Remove window cavity cover strip on outside of rear door. See 51 22 300 Removing and installing/replacing window cavity cover strip on rear door on left or right

Open door window.

Partially pull off rubber seal (1) and rubber guide (2).

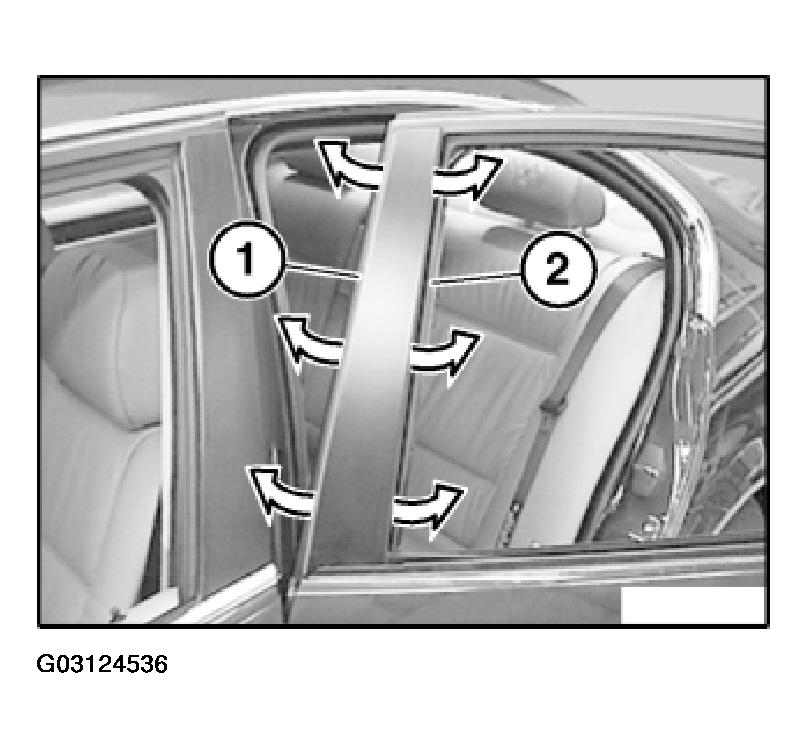

Fig 1: Removing Rubber Seal & Rubber Guide

G03124536

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (1).

Detach trim (2) towards front/top.

Fig 2: Detaching Trim Towards Front/Top

G03124537

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty plastic nuts (1).

Fig 3: Identifying Plastic Nuts

G03124538

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Trim (1) must not be damaged.

Fig 4: Identifying Trim

G03124539

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

To prevent wind noises.

Check gap with a 0.05 mm feeler gauge.

Slide feeler gauge between B-pillar finishers of front and rear doors.

When the finishers are correctly adjusted, it must be possible to feel a slight suction resistance over the entire length of the finisher.

If the gap is too big, this may result in wind noises.

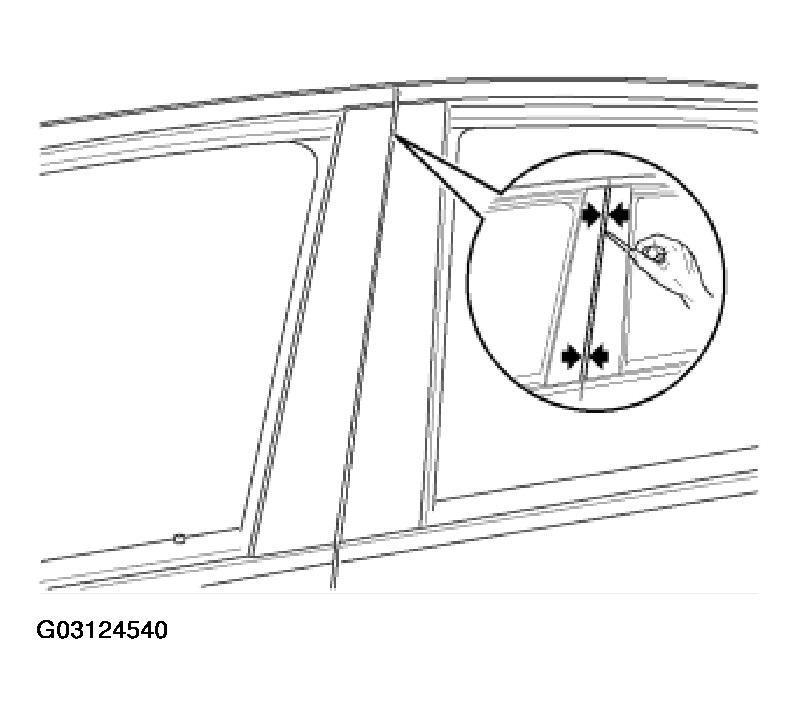

Fig 5: Sliding Feeler Gauge Between B-Pillar Finishers Of Front & Rear Doors

G03124540

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, release screws (1).

Press finisher (2) towards front and tighten down screws (1).

If gap is still too big, adjust finisher on window frame of front door.
