51 46 050 Removing and installing / replacing finisher for rear apron at top (touring)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove both trims for roof pillar (D-pillar), refer to REMOVING AND INSTALLING / REPLACING TRIM PANEL FOR REAR LEFT OR RIGHT ROOF PILLAR (D-PILLAR) (TOURING) .

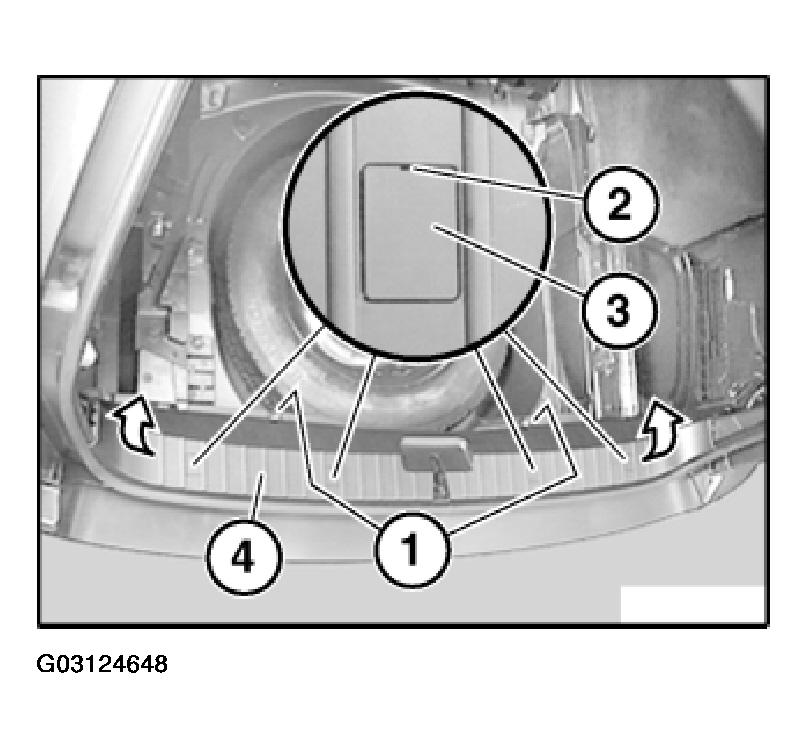

Release screws (1).

Lever out protective caps (3) at openings (2), remove and release screws underneath.

Screw out trim (4) towards inside and remove.

Fig 1: Removing Roof Pillar Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

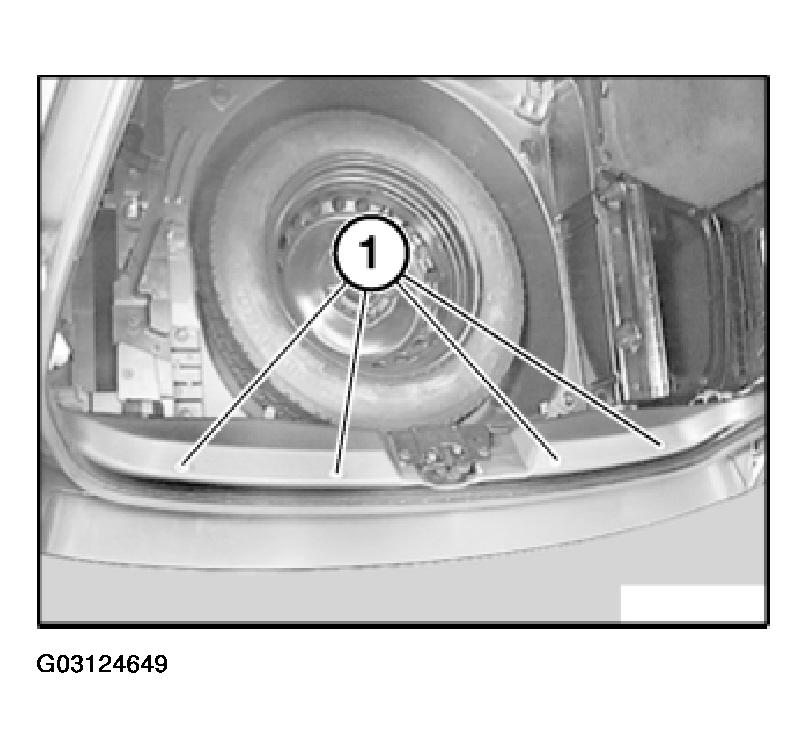

If necessary, replace faulty inserts (1).

Fig 2: Identifying Inserts

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

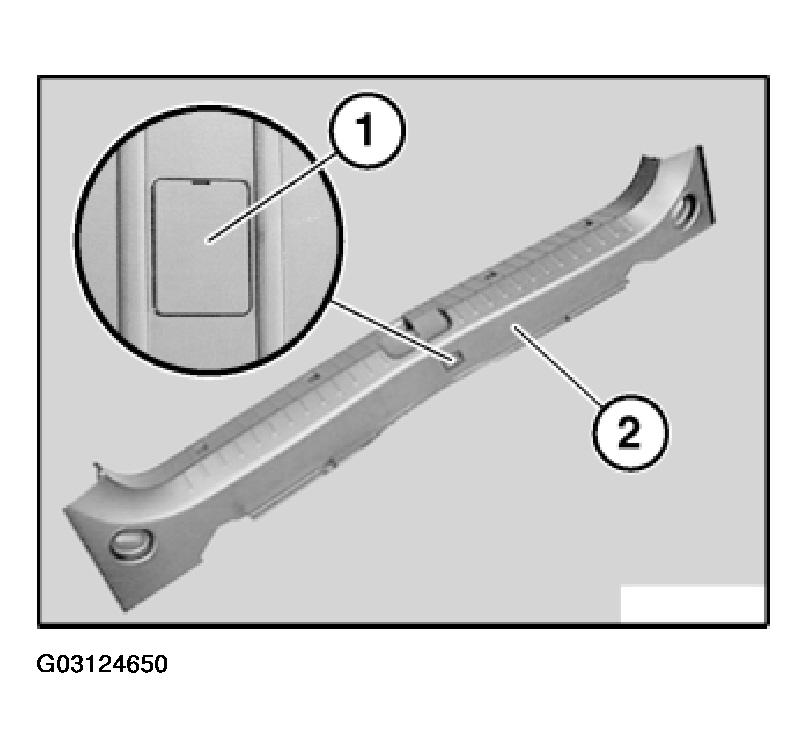

Fit trim (1) for emergency release on trim (2).

Fig 3: Fitting Trim For Emergency Release On Trim

Courtesy of BMW OF NORTH AMERICA, INC.
