Removing insert (glasses compartment) in carrier:

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

If necessary, open cover (1).

Press guide of cover (1) in middle with hand towards top and pull out glasses compartment (2) approx. 2 mm.

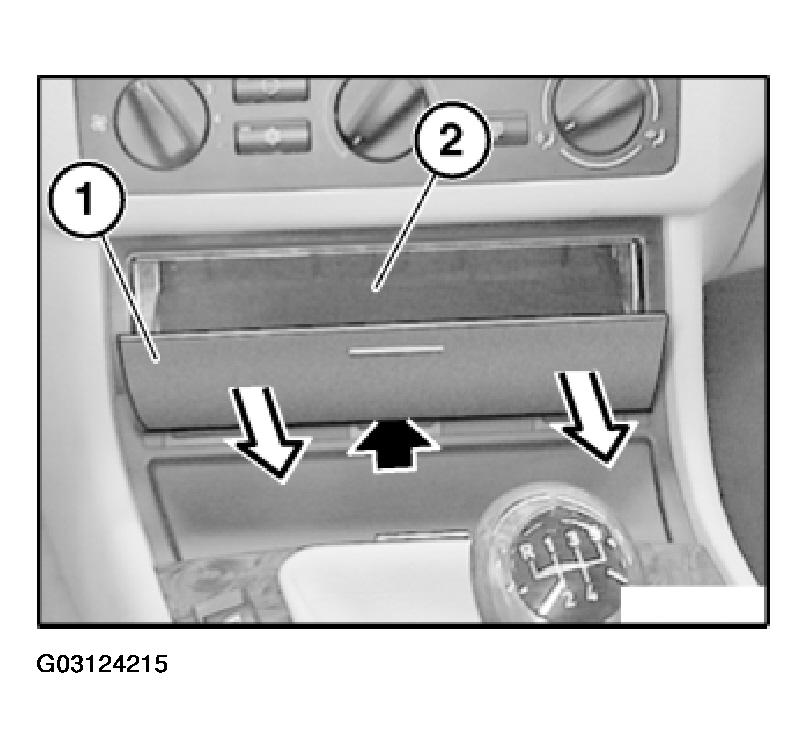

Fig 1: Pressing Guide Of Cover
G03124215Courtesy of BMW OF NORTH AMERICA, INC.

Press glasses compartment (1) at outside left/right downwards a little and pull out.

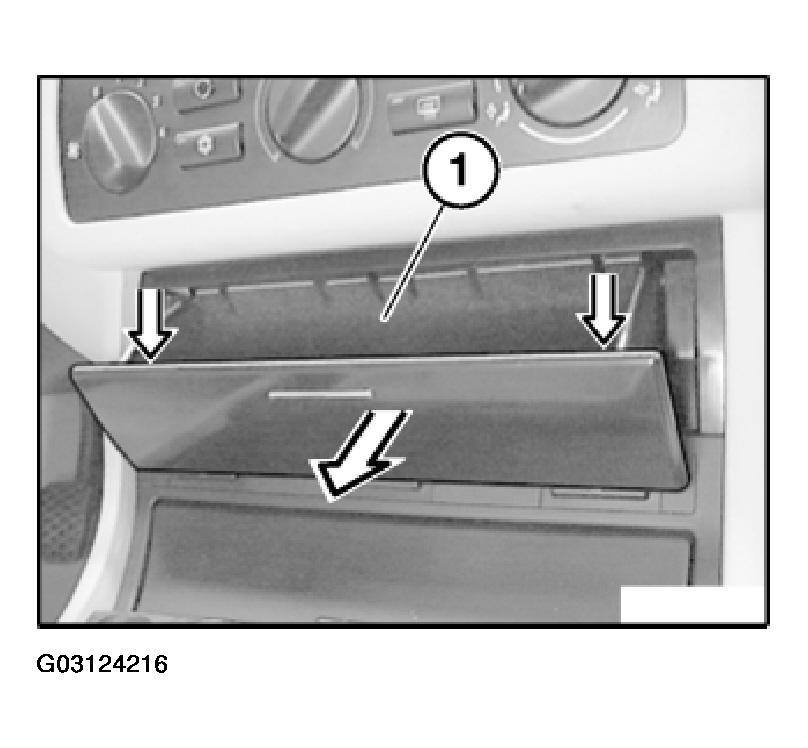

Fig 2: Pressing Glasses Compartment
G03124216Courtesy of BMW OF NORTH AMERICA, INC.
