Removing insert (compartment) in carrier:

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

If necessary, open cover (1).

Press insert (2) upwards in center with hand and simultaneously remove insert (2).

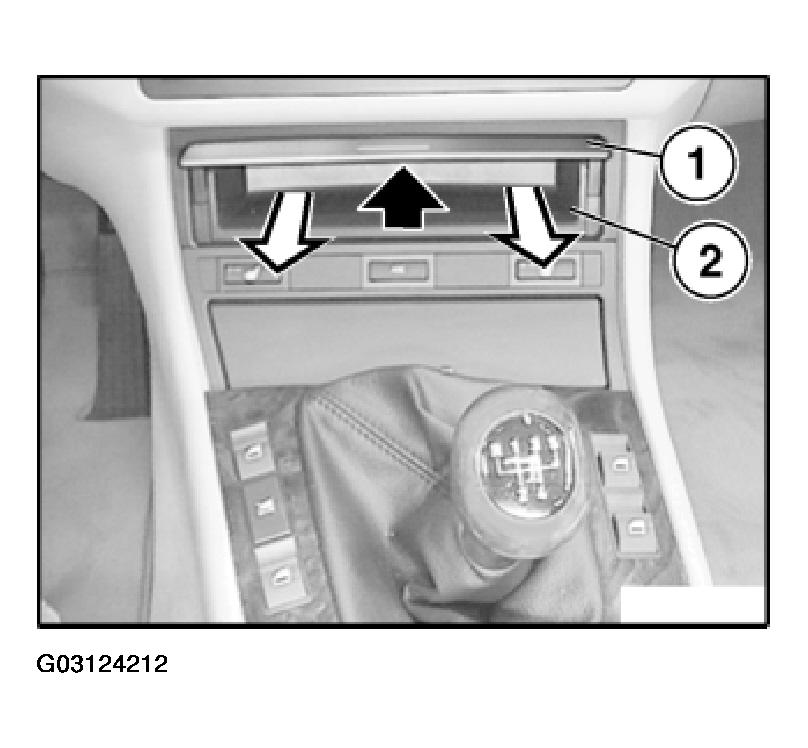

Fig 1: Removing Open Cover
G03124212Courtesy of BMW OF NORTH AMERICA, INC.
