51 16 360 Removing and installing right glove box

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Open glovebox.

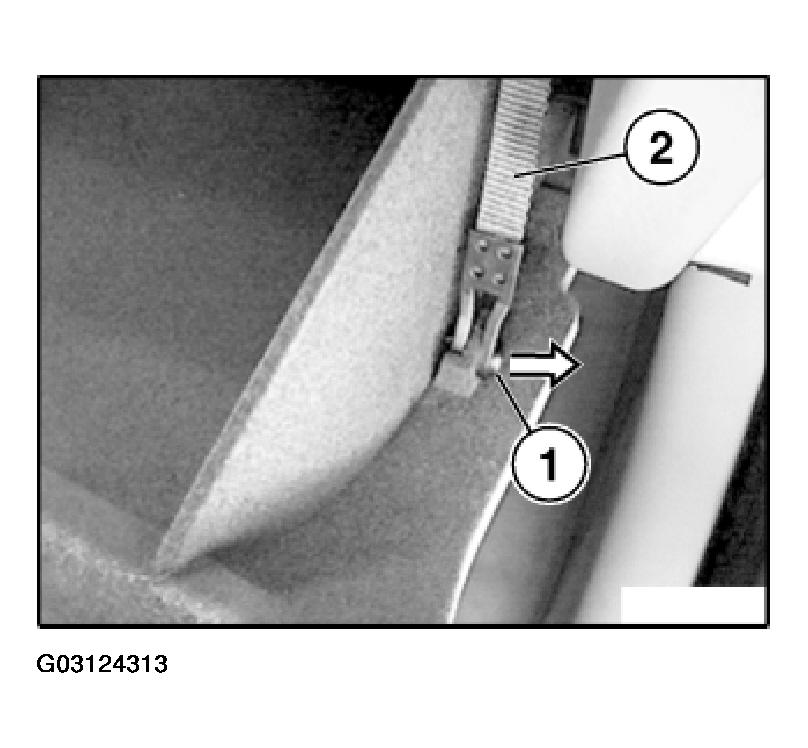

Detach pin (1) from retaining strap (2).

Fig 1: Detaching Pin From Retaining Strap

Courtesy of BMW OF NORTH AMERICA, INC.

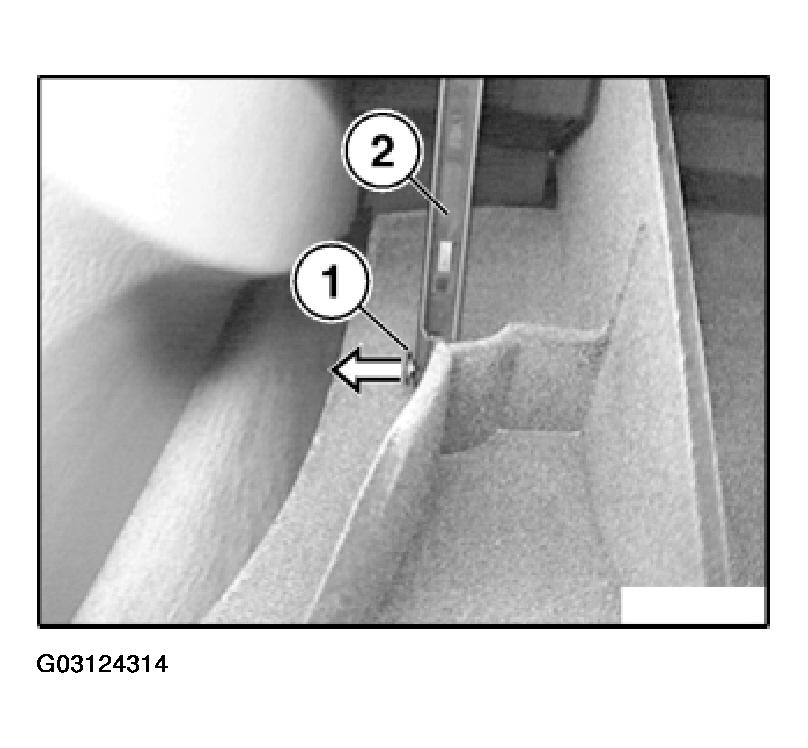

Detach pin (1) from shock absorber (2).

Fig 2: Detaching Pin From Shock Absorber

Courtesy of BMW OF NORTH AMERICA, INC.

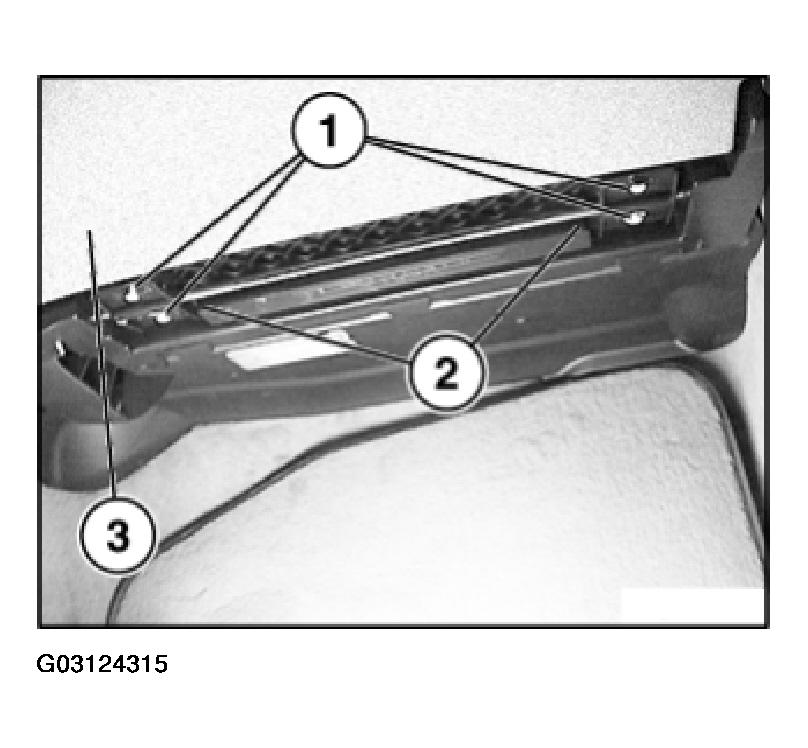

Unscrew bolts (1).

Remove bracket (2) and glove box (3).

Fig 3: Unscrewing Bolts

Courtesy of BMW OF NORTH AMERICA, INC.
