51 16 340 Removing and installing/replacing glovebox lock

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

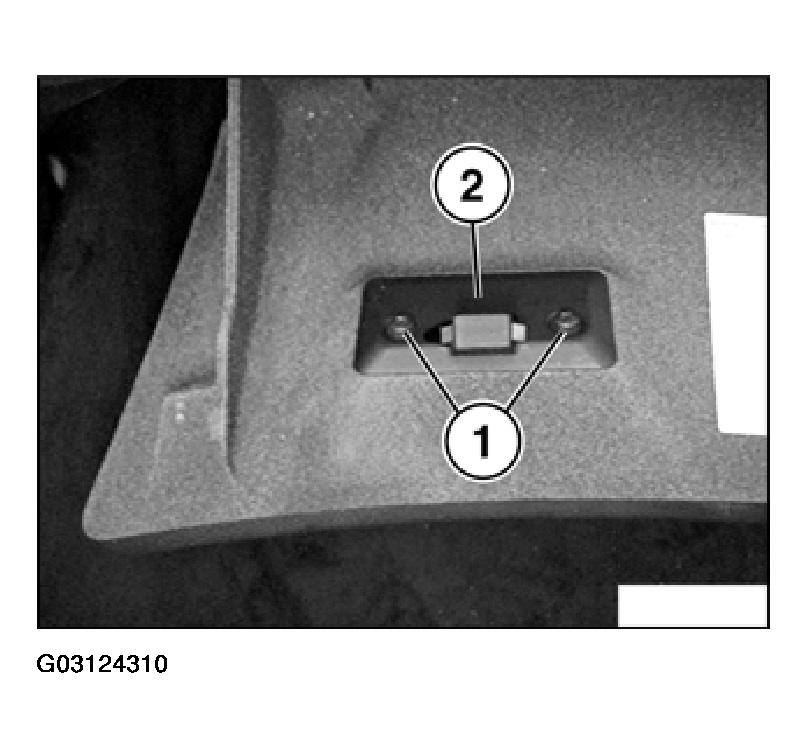

Unfasten screws (1) and remove upper (2) and lower sections of lock.

Fig 1: Unfastening Screws

Courtesy of BMW OF NORTH AMERICA, INC.

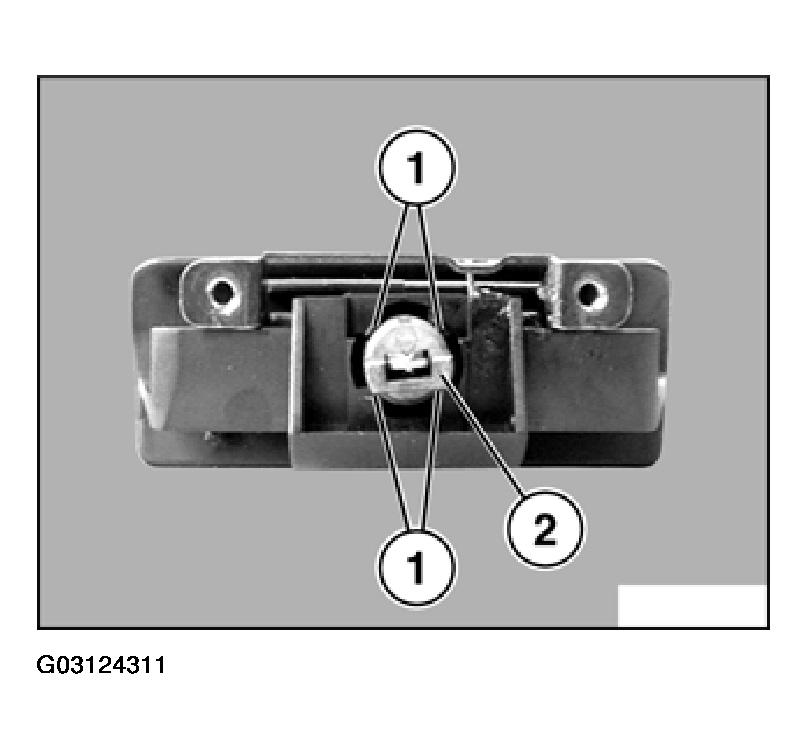

Insert vehicle key in lock cylinder (2).

Break open locks (1) if necessary and pull out lock cylinder (2) with vehicle key.

Fig 2: Inserting Vehicle Key In Lock Cylinder

Courtesy of BMW OF NORTH AMERICA, INC.
