51 16 202 Removing and installing/replacing front cup holder: Removal:

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Press sides of oddments tray (1) together and lift out.

Fig 1: Pressing Sides Of Oddments Tray

Courtesy of BMW OF NORTH AMERICA, INC.

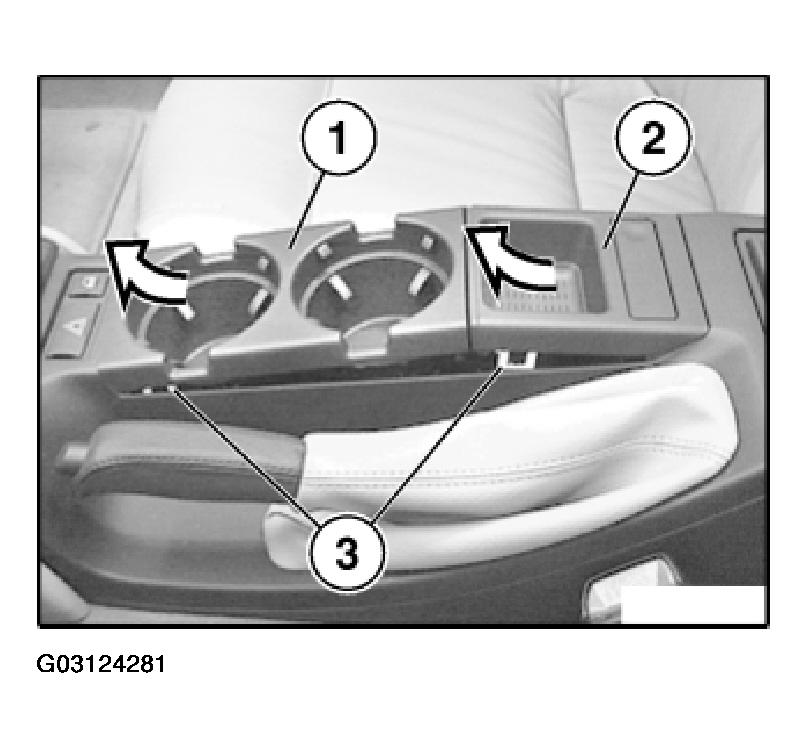

Cup holder (1) and oddments tray (2) are now unlocked from catches (3).

Remove cup holder (1) towards front/top and then remove oddments tray (2).

Fig 2: Removing Cup Holder

Courtesy of BMW OF NORTH AMERICA, INC.
