51 16 202 Removing and installing/replacing front cup holder: Installation:

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Guides (1) and supports (2) on left/right on cup holder (3) must not be damaged.

Fig 1: Installing Guides & Supports On Left/Right On Cup Holder
Courtesy of BMW OF NORTH AMERICA, INC.

Guides (1) and supports (2) on left/right on oddments tray (3) must not be damaged.
If necessary, replace fault tension spring (4).

Fig 1: Installing Guides & Supports On Left/Right On Oddments Tray
Courtesy of BMW OF NORTH AMERICA, INC.

Insert oddments tray (1) at rear into center console.

Guide (2) must be positioned between supports (3) of center console (4), oddments tray (1) can now be snapped down into place.

Fig 1: Installing Guide Between Supports Of Centre Console & Oddments Tray

Courtesy of BMW OF NORTH AMERICA, INC.

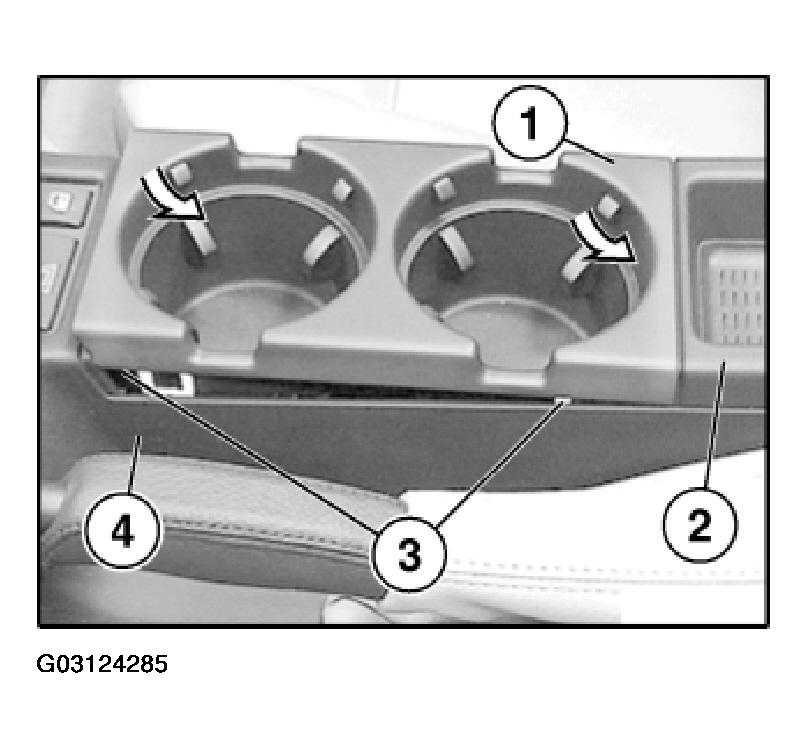

Insert cup holder (1) into oddments tray (2).

Guides (3) must be positioned between supports of center console (4), cup holder (1) can now be snapped down into place.

Fig 2: Inserting Cup Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

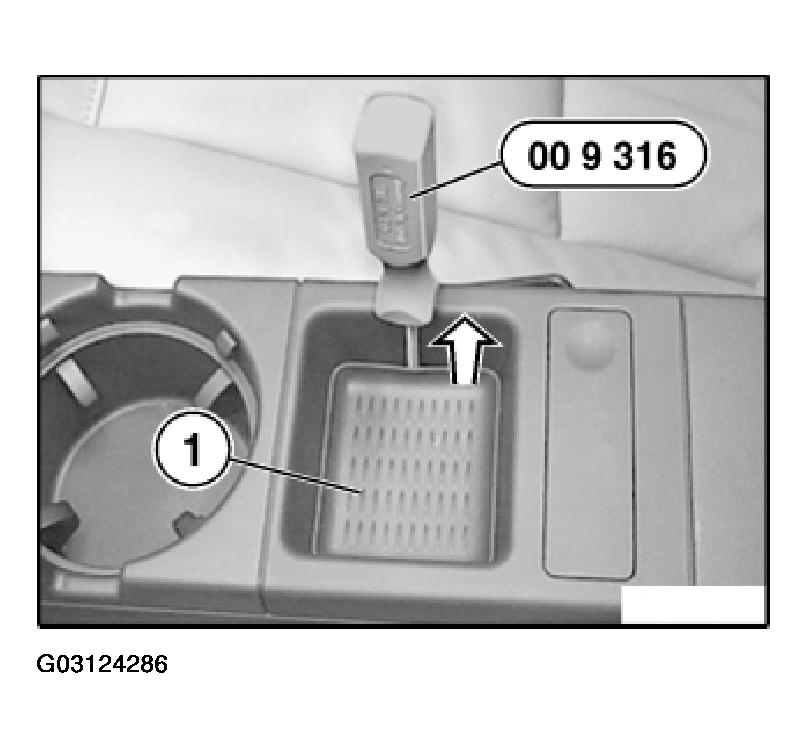

If necessary, lift out rubber tray (1) with special tool 00 9 316 (sealing lip wedge) and remove.

Fig 3: Using Special Tool 00 9 316
