Version without car phone:

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove storage tray, refer to REMOVING AND INSTALLING STORAGE TRAY  .
  2. Remove insert in storage tray, refer to REPLACING LEFT OR RIGHT OUTSIDE MIRROR HOUSING
  3. Version with cup holder:
  4. Remove front cup holder, refer to REMOVING AND INSTALLING/REPLACING FRONT CUP HOLDER  .

Press switch for hazard warning lights/central locking from below out of storage tray (1).

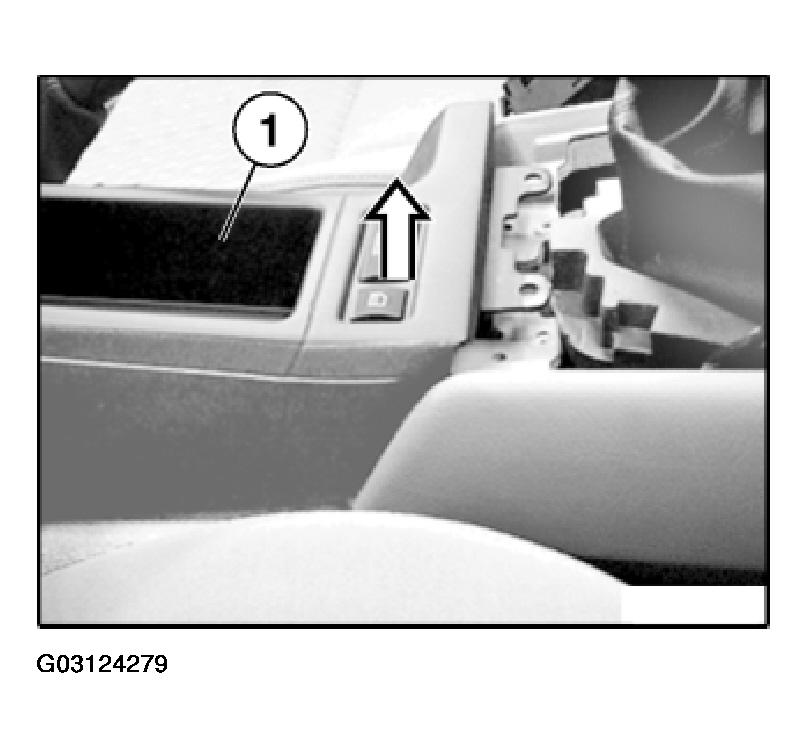

Fig 1: Pressing Switch For Hazard Warning Lights/Central
G03124279Courtesy of BMW OF NORTH AMERICA, INC.
