51 16 200 Removing and installing storage tray: Installation:

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

If necessary, feed out wire for ashtray light.

Fig 1: Releasing Screws
Courtesy of BMW OF NORTH AMERICA, INC.

Remove catches (1) and detach trim (2) towards top.

Fig 2: Removing Catches & Detaching Trim

G03124273

Courtesy of BMW OF NORTH AMERICA, INC.

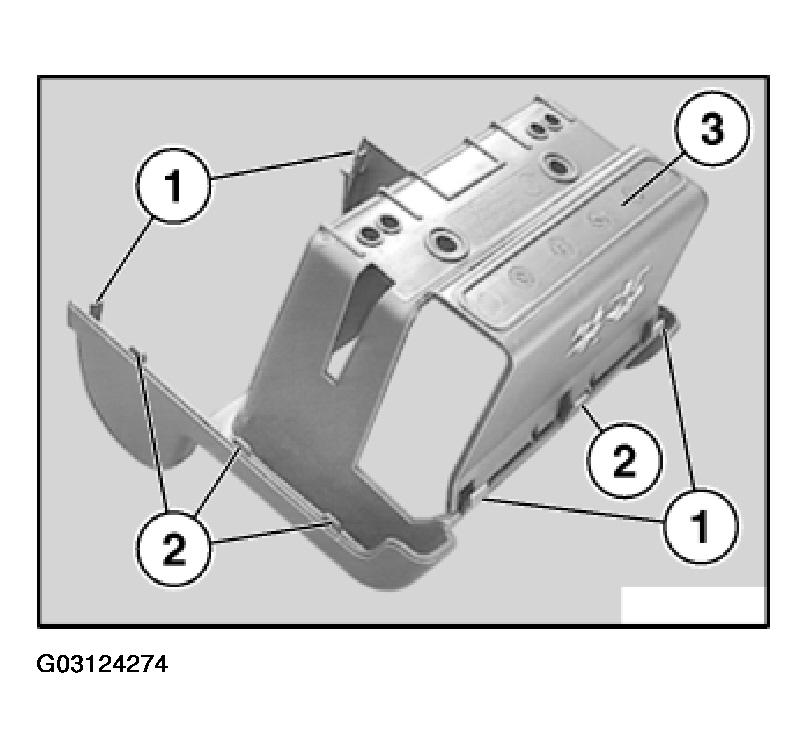

Catches (1) and guides (2) on insert (3) must not be damaged.

Fig 1: Installing Catches & Guides On Insert
Courtesy of BMW OF NORTH AMERICA, INC.

Unclip boot.

Version without center armrest:

Feed storage tray out towards rear and remove.

Fig 2: Unclipping Boot (1 Of 2)

G03124275

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip boot.

Fig 3: Unclipping Boot (2 Of 2)

G03124276

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Raise trim (2) and feed out storage tray (3) towards rear.

Disconnect plug connection for hazard warning lights/central locking.

Version with car phone:

Raise storage tray and disconnect plug connections.

Version without center armrest:

Feed storage tray out towards rear and remove.

Fig 4: Releasing Screws

G03124277

Courtesy of BMW OF NORTH AMERICA, INC.

Version with center armrest:

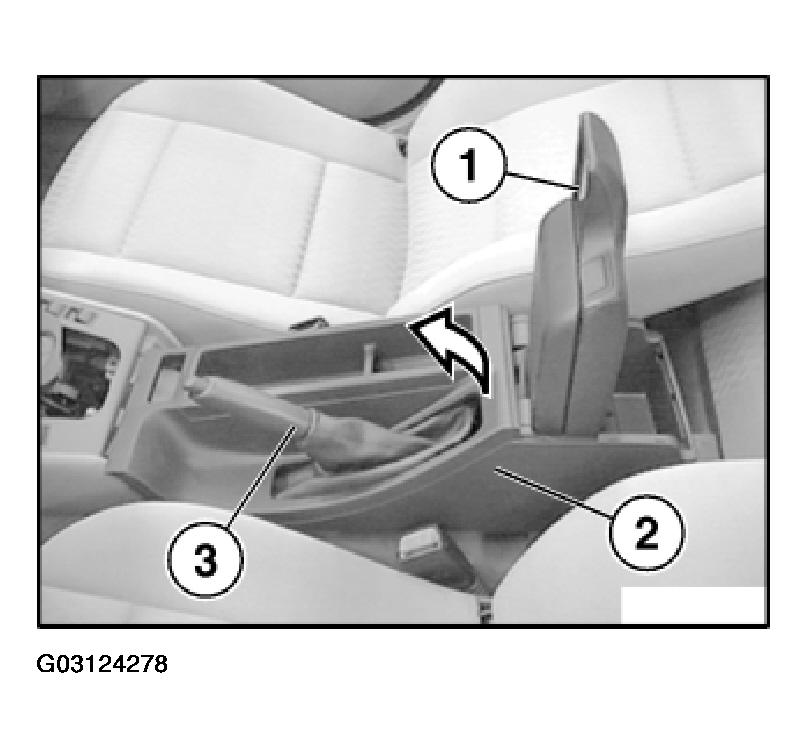

Set up center armrest (1).

Feed out storage tray (2) above center armrest (1) and handbrake lever (3).

Fig 5: Identifying Set Up Center Armrest

G03124278
